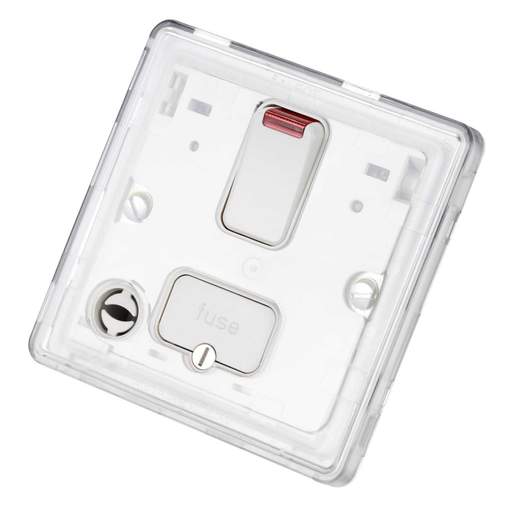

MK Dimensions 13A DP Switched Fused Spur Module with Neon and Flex Outlet White
Part Code: MH4971WHIC
Stock Code: 2624-0806
MK Dimensions 13A DP Switched Fused Spur Module with Neon and Flex Outlet White
Part Code: MH4971WHIC
Stock Code: 2624-0806
Features
- Front plate is not included, you will require part number MHFP004 in your choice of finish, please order separately
- Tool removable front plate
- Frontplate multi-lock system
- Captive and backed out terminal screws
- Fuse carrier lockable in open position
- Captive fuse carrier
- Top access, angled in-line terminals make wiring easier and quicker
- Screwless cord grip automatically clamps and securely holds the cable
- Complete with gasket for installation on uneven wall surfaces
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 13A
- Depth
- 9mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)9 mm
- Fixing Centres
- 60.3mm
- Frequency
- 50/60 Hz
- Fuse Fitted
- Yes
- Guarantee
- 20 Years
- Height
- 86mm
- Insert Colours
- White
- Mounting
- Wall
- Mounting Depth
- 35mm
- Neon
- Yes
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Dimensions
- Standards
- BS 1363-4:2016
- Suitable For

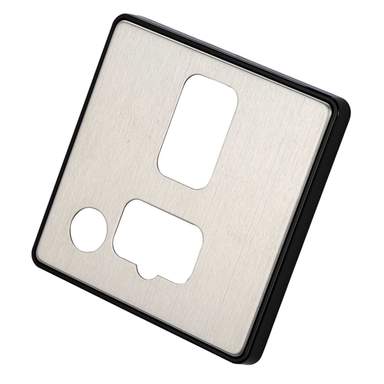

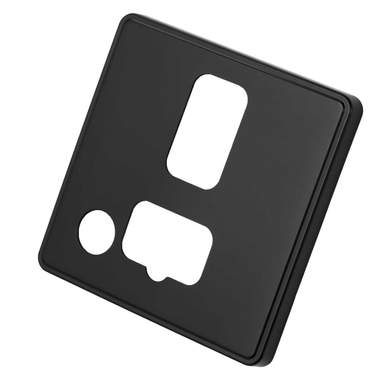

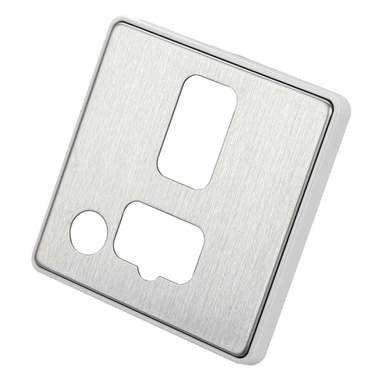

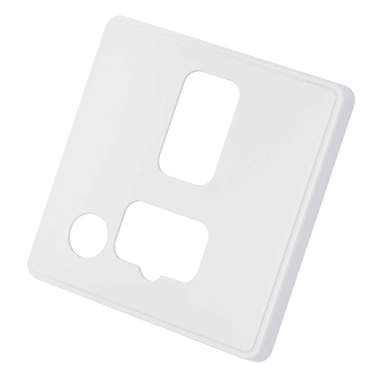

- MHFP004BSSB, MHFP004BSSW, MHFP004MBK and MHFP004WHI Face Plates
- Switched Unswitched
- Switched
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.11800kg
- Width
- 86mm
