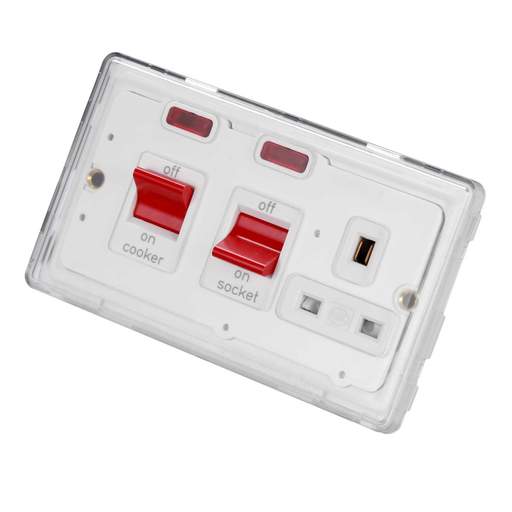

MK Dimensions 45A DP Cooker Control Unit Module with Neon White
Part Code: MH5061WHIC
Stock Code: 2624-0830
MK Dimensions 45A DP Cooker Control Unit Module with Neon White
Part Code: MH5061WHIC
Stock Code: 2624-0830
Features
- Front plate is not included, you will require part number MHFP042 in your choice of finish, please order separately
- Tool removable front plate
- Frontplate multi-lock system
- Captive and backed out terminal screws
- Double pole switching, neutral ‘make first’, ‘break last’ feature
- Replaceable neon indicators
- Complete with gasket for installation on uneven wall surfaces
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 45A
- Depth
- 9mm
- Dimensions
- (H)86 mm x (W)146 mm x (D)9 mm
- Fixing Centres
- 120.6mm
- Frequency
- 50/60 Hz
- Guarantee
- 20 Years
- Height
- 86mm
- Insert Colours
- White
- Mounting
- Wall
- Mounting Depth
- 35mm
- Neon
- Yes
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Dimensions
- Standards
- BS EN 60669-1:1999
- Suitable For

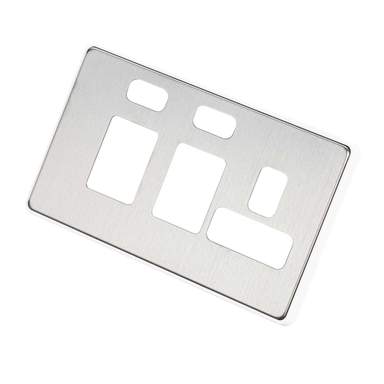

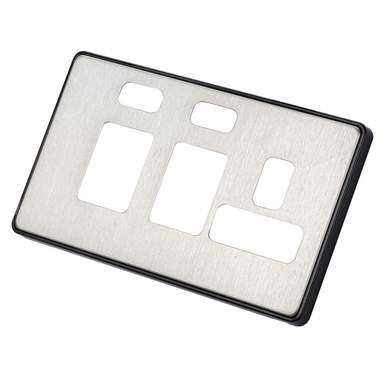

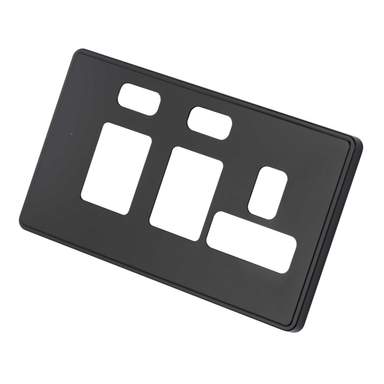

- MHFP042BSSB, MHFP042BSSW, MHFP042MBK and MHFP042WHI Front Plates
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.34000kg
- Width
- 146mm
