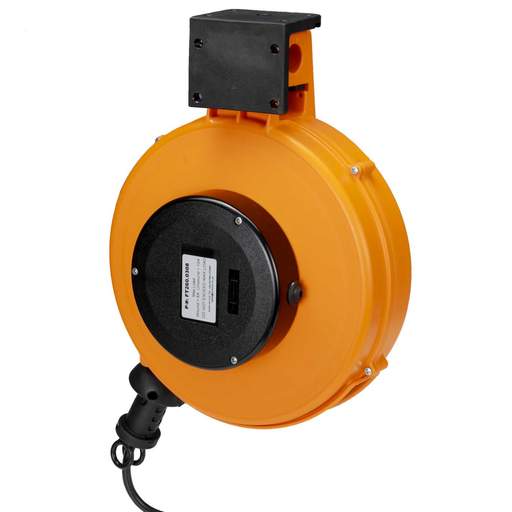

Schill 8m 110V / 230V 10A Fused Spring Return Cable Reel
Part Code: FT 260.0308
Stock Code: 2624-2975
Schill 8m 110V / 230V 10A Fused Spring Return Cable Reel
Part Code: FT 260.0308
Stock Code: 2624-2975
Features
- Uprated spring variant’s for lifting loads up to 1.2kg
- Max load wound / unwound: 8A / 10A
- Cable length and size: 8m x 3 x 1.5mm² HO5VV-F
- Universal mounting bracket [Wall, floor or ceiling]
- Manual on/off cable retraction ratchet
- Adjustable ball-stop
- High quality brass sliprings / sliver contacts
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Colour
- Black
- Cable Length
- 8m
- Cable Size
- 1.5mm²
- Colour
- Black/Yellow
- Current Rating
- 10A
- Diameter
- 260mm
- Dimensions
- (Dia)260 mm
- Fused
- Yes
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Thermoplastic
- Mounting
- Ceiling / Floor / Wall
- Packaging Types
- Each
- Unspsc V18
- 39121440
- Unspsc V24
- 39121440
- Voltage Rating
- 110V 230V
- Weight
- 0.724kg
