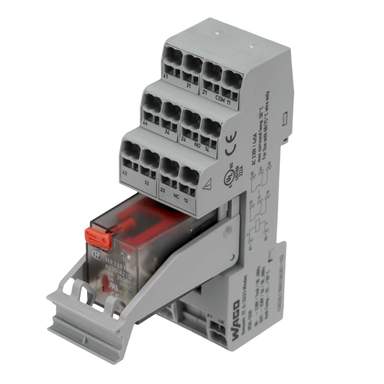

Wago 16A 230V AC 1 C/O Relay and Socket with Indication and Retaining Lever
Part Code: 788-508
Stock Code: 2625-5584
Wago 16A 230V AC 1 C/O Relay and Socket with Indication and Retaining Lever
Part Code: 788-508
Stock Code: 2625-5584
Features
- Complete relay and base assembly with retaining / extraction lever
- Coil suppressor module with coil state indication as standard
- Convenient jumpering options
- WAGO cage clamp terminals for reliable fast connections
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Changeover
- Yes
- Coil Voltage
- 230V AC
- Colour
- Grey
- Contact Configuration
- 1 CO
- Current Rating
- 16A
- Depth
- 86mm
- Dimensions
- (H)54 mm x (W)15 mm x (D)86 mm
- Guarantee
- 1 Year
- Height
- 54mm
- IP Rating
- IP20
- Mounting
- Top Hat DIN Rail 35mm
- Number of Pins
- 5
- Number of Poles
- 1 Pole
- Packaging Types
- Each
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Weight
- 0.04600kg
- Width
- 15mm
