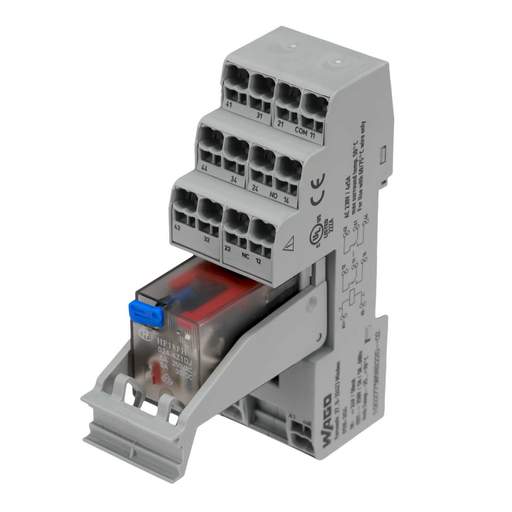

Wago 5A 24V DC 4 C/O Relay and Socket with Indication and Retaining Lever
Part Code: 858-304
Stock Code: 2625-5632
Wago 5A 24V DC 4 C/O Relay and Socket with Indication and Retaining Lever
Part Code: 858-304
Stock Code: 2625-5632
Features
- Complete relay and base assembly with retaining / extraction lever
- Manual test facility
- Coil suppression with coil state indication as standard
- Convenient jumpering of coil connection
- WAGO cage clamp terminals for reliable fast connections
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Changeover
- Yes
- Coil Voltage
- 24V DC
- Colour
- Grey
- Contact Configuration
- 4 CO
- Current Rating
- 5A
- Depth
- 97mm
- Dimensions
- (H)73 mm x (W)31 mm x (D)97 mm
- Guarantee
- 1 Year
- Height
- 73mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Top Hat DIN Rail 35mm
- Number of Pins
- 14
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Weight
- 0.09800kg
- Width
- 31mm
