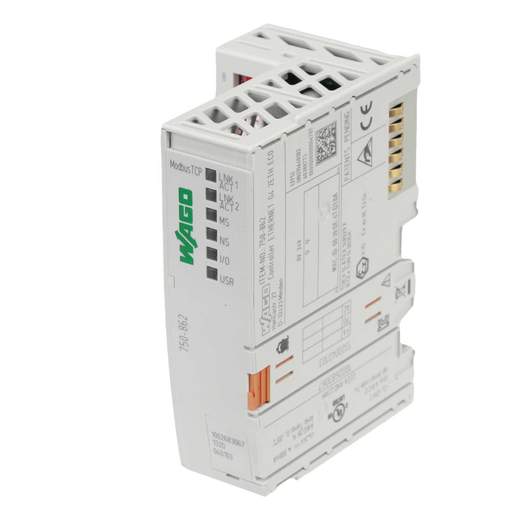

Wago Eco Controller MODBUS/TCP/IP (PLC)
Part Code: 750-862
Stock Code: 2625-5695
Wago Eco Controller MODBUS/TCP/IP (PLC)
Part Code: 750-862
Stock Code: 2625-5695
Features
- Can be used as a programmable controller within ethernet networks in conjunction with the WAGO I/O System
- Detects all connected I/O modules and creates a local process image
- Two ethernet interfaces and an integrated switch allow the fieldbus to be wired in a line topology eliminating the need for additional network devices such as switches or hubs
- The DIP switch configures the last byte of the IP address and may be used for IP address assignment
- Designed for fieldbus communication in Modbus® networks
- Supports a wide variety of standard ethernet protocols [e.g. HTTP(S), BootP, DHCP, DNS, SNTP, (S)FTP, SNMP]
- Integrated webserver provides user configuration options while displaying the controllers status information
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Grey
- Depth
- 71.9mm
- Dimensions
- (H)96.8 mm x (W)49.5 mm x (D)71.9 mm
- Guarantee
- 1 Year
- Height
- 96.8mm
- Packaging Types
- Each
- Product Range
- Wago 750 Series
- Unspsc V18
- 32151705
- Unspsc V24
- 32151705
- Weight
- 0.10530kg
- Width
- 49.5mm
