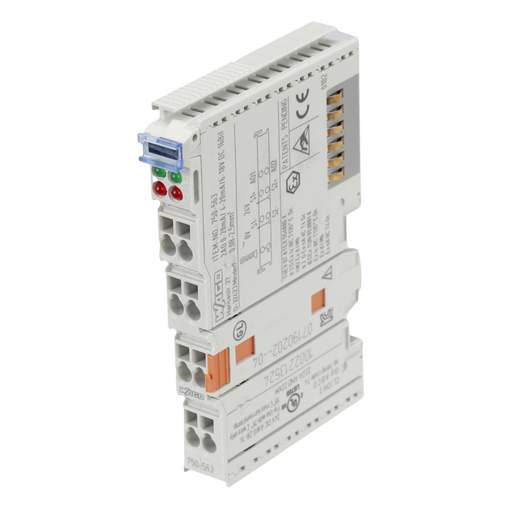

Wago 2 Channel Analogue Output Configurable 0-4mA / 4-20mA
Part Code: 750-563
Stock Code: 2625-5713
Wago 2 Channel Analogue Output Configurable 0-4mA / 4-20mA
Part Code: 750-563
Stock Code: 2625-5713
Features
- Generates output currents ranging from 0- 20mA and 4-20mA or output voltages in the range from 6-18V for the field
- Ranges can be configured via WAGO‐I/O‐CHECK or GSD files
- Two short circuit-proof output channels and enables direct connection of two 2-wire actuators to AO1 and ground or AO2 and ground
- Signals are output via AO1 or AO2. In addition, the sense lines from 4-wire actuators can be connected to -Sense AO1 and +Sense AO1 or -Sense AO2 and +Sense AO2
- Both output channels have a common ground potential
- Output signal is electrically isolated and transmitted with a resolution of 16 bits
- Both internal system and field side supply power the module
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Grey
- Depth
- 69.8mm
- Dimensions
- (H)100 mm x (W)12 mm x (D)69.8 mm
- Guarantee
- 1 Year
- Height
- 100mm
- Number of Channels
- 2
- Packaging Types
- Each
- Product Range
- Wago 750 Series
- Unspsc V18
- 32151705
- Unspsc V24
- 32151705
- Weight
- 0.05120kg
- Width
- 12mm
