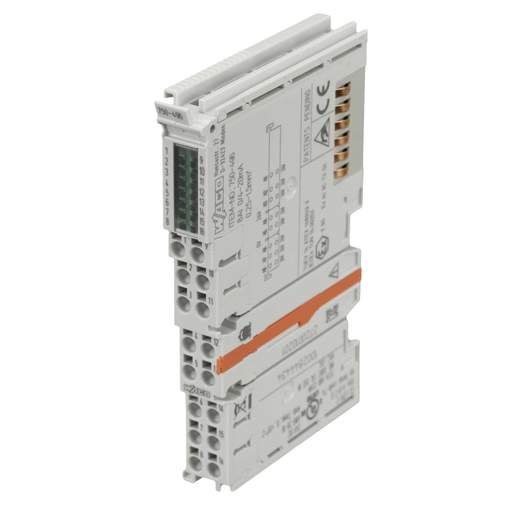

Wago 8 Channel Analogue Input Configurable 0-4mA / 4-20mA
Part Code: 750-496
Stock Code: 2625-5719
Wago 8 Channel Analogue Input Configurable 0-4mA / 4-20mA
Part Code: 750-496
Stock Code: 2625-5719
Features
- Analogue input module processes standard 0-20mA, 4-20mA and 3.6-21mA [Namur NE43] signals
- Module provides a 24V power supply for a direct connection to 2 wire sensors
- Input signal is electrically isolated and transmitted with a resolution of 12 bits
- Wire break, short circuit and out-of-measurement range are indicated by a red LED
- Unused channels can be deactivated
- The module can be configured via WAGO‐I/O‐CHECK or GSD files
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Grey
- Depth
- 69mm
- Dimensions
- (H)100 mm x (W)12 mm x (D)69 mm
- Guarantee
- 1 Year
- Height
- 100mm
- Number of Channels
- 8
- Packaging Types
- Each
- Product Range
- Wago 750 Series
- Unspsc V18
- 32151705
- Unspsc V24
- 32151705
- Weight
- 0.04740kg
- Width
- 12mm
