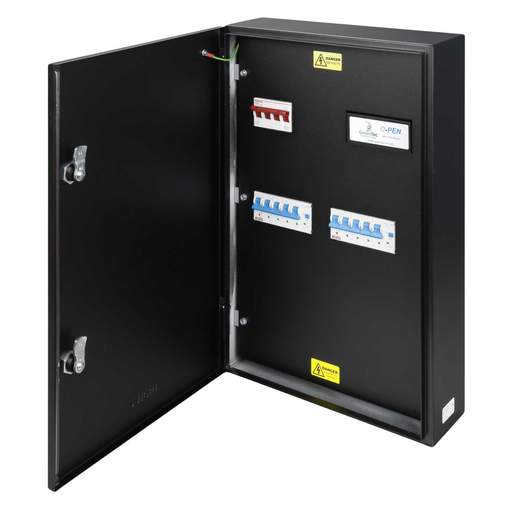

Matt:e 100A 3 Phase EV Connection Unit with Built in Open PEN Detection
Part Code: EVU-1-100-TP
Stock Code: 2629-8451
Matt:e 100A 3 Phase EV Connection Unit with Built in Open PEN Detection
Part Code: EVU-1-100-TP
Stock Code: 2629-8451
Features
- Built-in matt:e O-PEN technology, which allows for the connection of 1 x 100A three phase load to the existing PME earthing facility
- Standard mild steel steel IP4X enclosure
- No earth electrodes required
- Phase loss protection
- 5 pole mains isolator with manually resettable shunt trip
- Standard 1 year parts warranty
- Simple wire in, wire out connection
- With 1 x connection for 100A 3 phase load
- Designed and built in the UK
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Current Rating
- 100A
- Depth
- 140mm
- Dimensions
- (H)550 mm x (W)360 mm x (D)140 mm
- Finish
- Powder Coated
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 550mm
- IP Rating
- IP4X
- Material
- Mild Steel
- Mounting
- Wall
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- No
- Ozev Approval
- No
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 415V
- Weight
- 7.00000kg
- Width
- 360mm
