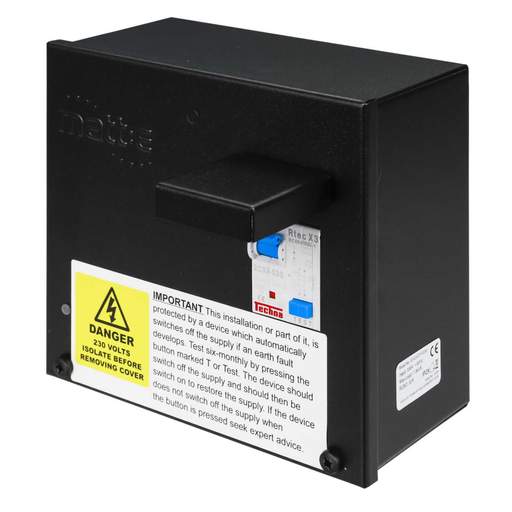

Matt:e Single Phase Voltage Monitoring and Protection Unit with Current Limiting
Part Code: SP-EVCP-RC60
Stock Code: 2629-8460
Matt:e Single Phase Voltage Monitoring and Protection Unit with Current Limiting
Part Code: SP-EVCP-RC60
Stock Code: 2629-8460
Features
- Built-in matt:e technology, which allows for the connection of 1 x 32A single phase charge point to the existing PME earthing facility
- Incorporates unique monitoring device which disconnects all poles including CPC in the event of a fault
- Automatic load curtailment isolating the charge point from the supply once the house consumption rises above the pre-set limit and automatically restores the power to the charge point when the load falls back within a satisfactory level.
- Load management with hard wired CT [factory set at 60A]
- BS:7671 18th Edition compliant
- CT with simple plug and play connection
- Standard 3 year parts warranty
- Built in 32A double pole type A RCBO
- Standard mild steel IP2X enclosure
- Designed and built in the UK
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Current Rating
- 32A
- Depth
- 111mm
- Dimensions
- (H)169 mm x (W)182 mm x (D)111 mm
- Finish
- Powder Coated
- Frequency
- 50 Hz
- Guarantee
- 3 Years
- Height
- 169mm
- IP Rating
- IP2X
- Material
- Mild Steel
- Number of Ways
- 1
- Packaging Types
- Each
- Previously Known As
- SP-EVCP-RC 60
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.00000kg
- Width
- 182mm
