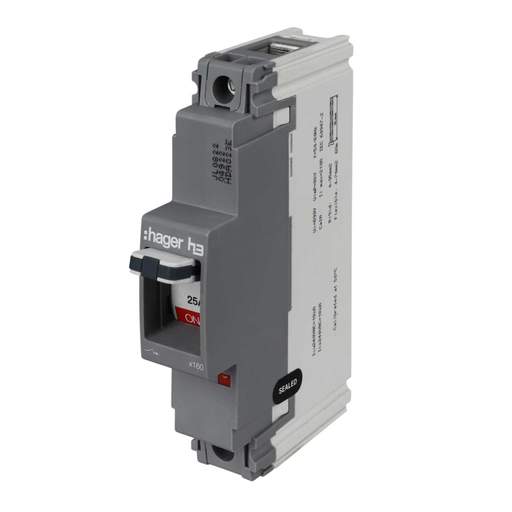

Hager 25A Single Pole 18kA H3 MCCB
Part Code: HDA023E
Stock Code: 2629-9891
Hager 25A Single Pole 18kA H3 MCCB
Part Code: HDA023E
Stock Code: 2629-9891
Features
- For use with Hager JN [250A] & Hager JF [400A] Panelboard's
- Fixed thermal and fixed magnetic trip unit
- Integrated padlocking handle
- Access to mechanical test button on cover
- Lockable cover protects MCCB settings
- Cage terminals
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 25A
- Depth
- 68mm
- Dimensions
- (H)130 mm x (W)25 mm x (D)68 mm
- Height
- 130mm
- Incoming Terminal Capacity
- 95mm² Rigid, 70mm² Flexible
- Mounting
- Panel
- Number of Poles
- Single Pole
- Outgoing Terminal Capacity
- 95mm² Rigid, 70mm² Flexible
- Packaging Types
- Each
- Short Circuit Rating
- 18kA
- Standards
- BS EN 60947-2
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Voltage Rating
- 690V
- Weight
- 0.41kg
- Width
- 25mm
