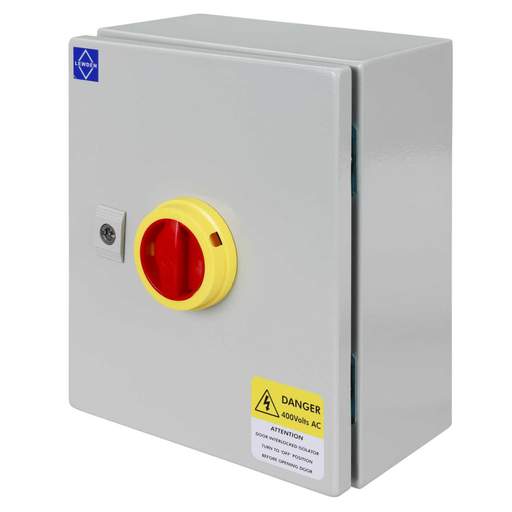

Lewden 80A TP+N Metal Isolator Switch Disconnector
Part Code: IS804P
Stock Code: 2633-8636
Lewden 80A TP+N Metal Isolator Switch Disconnector
Part Code: IS804P
Stock Code: 2633-8636
Features
- Isolator Switch, AC23A allows safe operation even with highly inductive loads [motors etc]
- Powder coated mild steel enclosure with RAL7035 finish
- Padlockable in the "OFF" position and door interlocked in the "ON" position
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 80A
- Depth
- 200mm
- Dimensions
- (H)250 mm x (W)250 mm x (D)200 mm
- Guarantee
- 1 Year
- Height
- 250mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- Mild Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Standards
- IEC60947-3
- Terminal Capacity
- 25mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 690V
- Weight
- 1.56000kg
- Width
- 250mm
