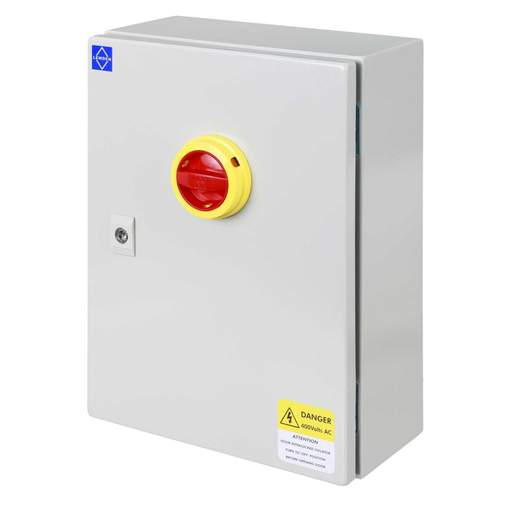

Lewden 63A / 80A TP+N Metal Fused Switch
Part Code: FIS63804P
Stock Code: 2633-8654
Lewden 63A / 80A TP+N Metal Fused Switch
Part Code: FIS63804P
Stock Code: 2633-8654
Features
- Isolator switch, AC23A allows safe operation even with highly inductive loads [motors etc]
- Powder coated mild steel enclosure with RAL7035 finish
- Padlockable in the "OFF" position and door interlocked in the "ON" position
- 63A gG and 80A aM fuses included
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lewden
- Current Rating
- 80A
- Depth
- 150mm
- Dimensions
- (H)400 mm x (W)300 mm x (D)150 mm
- Guarantee
- 1 Year
- Height
- 400mm
- IP Rating
- IP65
- Lockable
- Yes
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Standards
- IEC60947-1, EC60947-3, IEC60269-2 (BS88-2)
- Supplied With
- 3 x 63A and 3 x 80A Fuses
- Terminal Capacity
- 25mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 10.00000kg
- Width
- 300mm
