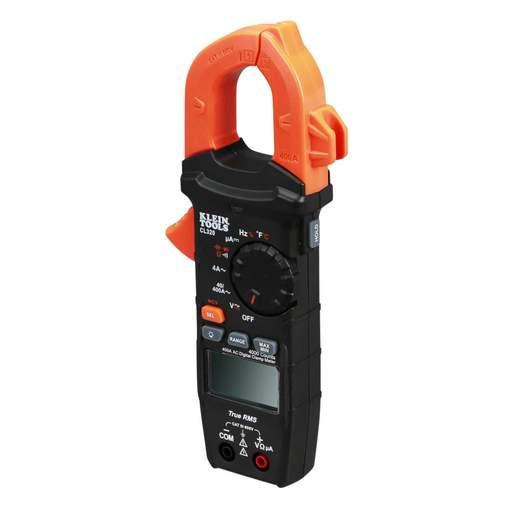

Klein 400A AC Auto Ranging HVAC Digital Clamp Meter
Part Code: CL320
Stock Code: 2635-5736
Klein 400A AC Auto Ranging HVAC Digital Clamp Meter
Part Code: CL320
Stock Code: 2635-5736
Features
- Clamp meter measures AC current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC micro-amp, capacitance, duty cycle, diode test and continuity via test leads, and temperature with a thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging true root mean squared [TRMS] measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter [69445 or 69417 - sold separately] for hands-free operation
- Measures temperature with a K-type thermocouple probe
- Auto-range, data hold and max / min value
- Includes a carrying case, test leads with CAT III / CAT IV safety caps, thermocouple, instructions and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6' [2m] drop
- CAT III 600V, Class 2, double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 400A
- Ac Voltage Measurement
- 600V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Capacitance Measurement
- 4000µF
- Compliance
- CE
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Voltage Measurement
- 600V DC
- Dimensions
- (L)215 mm x (H)38 mm x (W)89 mm
- Display Count
- 4000
- Display Type
- Backlit LCD
- Frequency Measurement
- 10 Hz - 1 MHz
- Guarantee
- 2 Years
- Height
- 38mm
- Jaw Opening Capability
- 41mm
- Length
- 215mm
- Material
- ABS
- Number of Batteries
- 3
- Packaging Types
- Each
- Resistance
- 40MΩ
- Safety Range
- CAT III 600V
- Supplied With
- Carrying Case, Instructions, Test Leads, Thermocouple and Batteries
- Temperature Range
- -40 - 1000°C
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Video Url
- https://www.youtube.com/embed/XJIpejZfAGg
- Weight
- 0.31400kg
- Width
- 89mm
