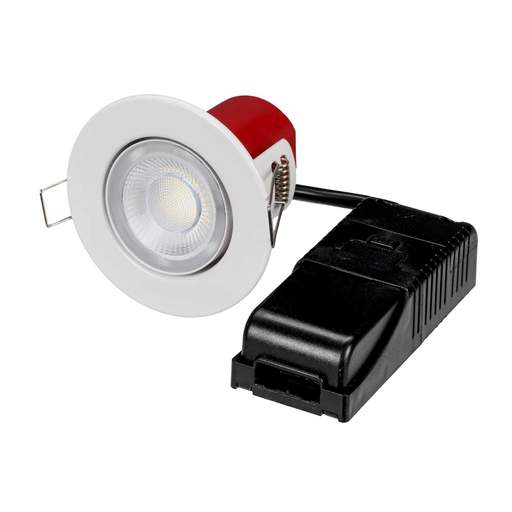

Xcite 5W LED Fire Rated Colour Selectable IP65 Tilt Downlight White
Part Code: XCFRAT5CTW
Stock Code: 2637-7273
Xcite 5W LED Fire Rated Colour Selectable IP65 Tilt Downlight White
Part Code: XCFRAT5CTW
Stock Code: 2637-7273
Features
- IP65 rated tilt downlight suitable for bathrooms
- CCT colour select function via simple 3 way selector switch [3000/4000/6000K]
- Lumen output: 400lm [3000K], 450lm [4000K], 500lm [6000K]
- Dimmable as standard
- Loop in / out mains connections with easy-fit connector
- 30, 60 and 90 minute fire rating with solid timber joists
- Steel body providing a high level of fire protection in accordance with Building Regulations Part B
- Shallow downlight [67mm depth]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 60°
- Class Type
- Class 1
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/6000 K
- Compliance
- UKCA, CE
- Cut Out
- 65mm
- Depth
- 67mm
- Diameter
- 85mm
- Dimensions
- (Dia)85 mm x (D)67 mm
- Dimmable
- Yes
- Efficacy Rating
- 100
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 3 Years
- IP Rating
- IP65
- Ik Rating
- IK03
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Lumens Output
- 400lm 450lm 500lm
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 5W
- Product Range
- xcite FRD Mini Tilt CC
- Standards
- BS EN 60598
- Type
- Downlights
- Unspsc V18
- 39111515
- Unspsc V24
- 39111515
- Voltage Rating
- 230V
- Weight
- 0.15kg
