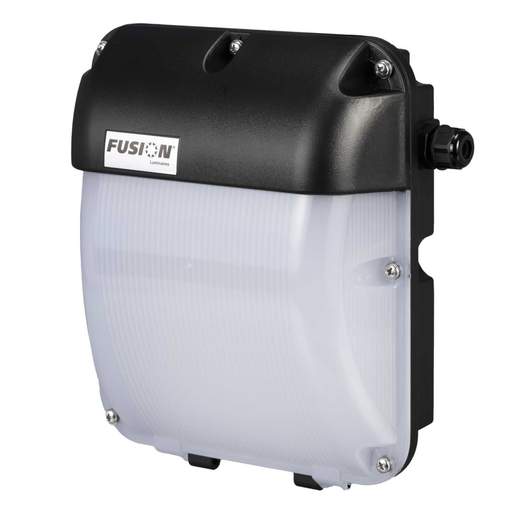

Fusion 20W LED Colour Selectable Wallpack
Part Code: FWPCC
Stock Code: 2641-1884
Fusion 20W LED Colour Selectable Wallpack
Part Code: FWPCC
Stock Code: 2641-1884
Features
- CCT colour select function [WW / CW / DW]
- Lumen output: 1500lm [3000K] WW, 1600lm [4000K] CW, 1550lm [6500K] DW
- Die-cast aluminium black powder coated body and polycarbonate diffuser
- Push-fit [loop-in / loop-out] terminal block
- Cable entry points [2 x M16]
- Beam angle: 115°
- LED lifetime: 50,000 hrs [L70 / B50]
- 5 Year guarantee and 1 year on-site warranty
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Beam Angle
- 115°
- Colour
- Black
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- Selectable - 3000/4000/6500 K
- Compliance
- UKCA, CE
- Depth
- 82mm
- Dimensions
- (H)221 mm x (W)207 mm x (D)82 mm
- Dimmable
- No
- Energy Saving
- Yes
- Finish
- Powder Coated
- Frequency
- 50/60 Hz
- Guarantee
- 5 Years
- Height
- 221mm
- IP Rating
- IP65
- Ik Rating
- IK06
- Lamp Life
- 50000h
- Lens Colour
- Opal
- Material
- Die-Cast Aluminium / Polycarbonate
- Mounting
- Wall
- Operating Temperature Range
- -10 - +40°C
- Operating Voltage Range
- 220 - 240V
- Packaging Types
- Box
- Power Rating
- 20W
- Sensor
- No
- Unspsc V18
- 39111612
- Unspsc V24
- 39111612
- Video Url
- https://www.youtube.com/embed/8uFejb-cuYQ
- Voltage Rating
- 240V
- Weight
- 0.96500kg
- Width
- 207mm
