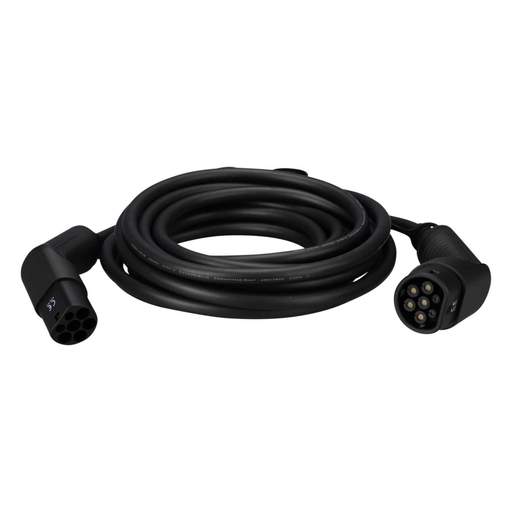

Rolec EV 10m 32A 3 Phase Type 2 to Type 2 Charging Lead
Part Code: EVPP0108
Stock Code: 2647-0615
Rolec EV 10m 32A 3 Phase Type 2 to Type 2 Charging Lead
Part Code: EVPP0108
Stock Code: 2647-0615
Features
- Ultra flexible TEP cable sheath
- 32A cables to 6.0mm cross-sectional area plus pilots
- Tested by an independent IEC national certifying body
- Tested to 2,500V DC
- 10,000 mating cycle performance
- 4,750N minimum drive over rating
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Length
- 10m
- Charging Mode
- 3
- Charging Power
- 22kW
- Colour
- Black/Grey
- Current Rating
- 32A
- Dimensions
- (L)10 m
- Ev Type
- IEC 62196 (Type 2)
- Guarantee
- 1 Year
- IP Rating
- IP54
- Lead Type
- Type 2 to Type 2
- Length
- 10m
- Material
- Hard Wearing, Polybutylene Terephalate (PBT) Handle, Copper Alloy Contacts
- Number of Poles
- Triple Pole
- Operating Temperature Range
- -30 - 50°C
- Packaging Types
- Each
- Plug Type
- Type 2
- Product Range
- Leads
- Standards
- IEC62196
- Unspsc V18
- 25175003
- Unspsc V24
- 25175004
- Voltage Rating
- 415V
- Weight
- 6.46000kg
- kW Rating
- 22kW
