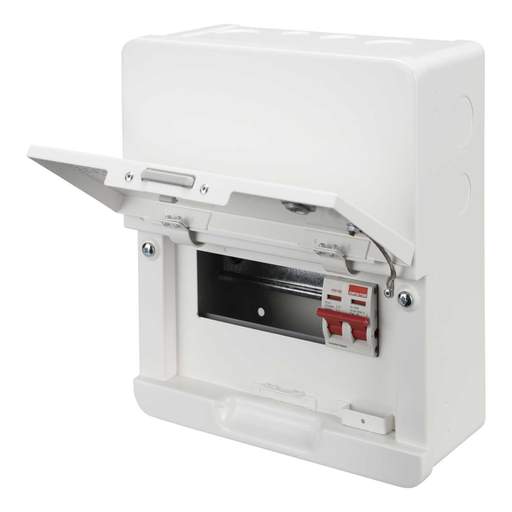

Contactum 6 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: SDD061MS
Stock Code: 2647-1641
Contactum 6 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: SDD061MS
Stock Code: 2647-1641
Features
- 100A incoming isolator fitted
- Amendment 3 compliant
- Non-combustible enclosure
- Meter Tails Retention Clamp
- Spirit level for added installation guidance
- Retained screws - fitted on the enclosure lid for ease of fixing and convenience, no more lost cover screws
- Unique hinged lid design, can be latched open
- Finger operated mechanical lid clip - safety feature - needs to be pressed to be opened
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Contactum
- Cable Entry
- Selection of Knockouts
- Current Rating
- 100A
- Depth
- 114mm
- Dimensions
- (H)262 mm x (W)227 mm x (D)114 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 262mm
- IP Rating
- IP4X
- Incoming Device
- 100A DP Isolator
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 8
- Number of Outgoing Ways
- 6
- Packaging Types
- Each
- Product Range
- Defender 2.0
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.15kg
- Width
- 227mm
