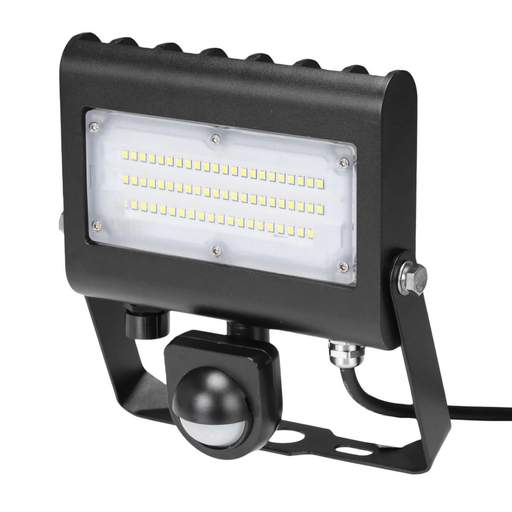

Challenger 30W LED High Lumen Slimline Floodlight with PIR 5000K
Part Code: SLFLF30BP
Stock Code: 2658-2929
Challenger 30W LED High Lumen Slimline Floodlight with PIR 5000K
Part Code: SLFLF30BP
Stock Code: 2658-2929
Features
- Selectable wattage via dip switch [30W/20W/15W/10W]
- High lumen output LED floodlight
- Slimline lightweight design
- 120° PIR with up to 10m detection distance
- Adjustable PIR, lux and time delay settings
- Daylight white light [5000K]
- Polycarbonate encapsulated lens module
- Lumiled chipset
- Pre-wired with 1m flexible cable
- IP65 ingress protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Challenger
- Cable Length
- 1m
- Class Type
- Class 1
- Colour
- Black
- Colour Rendering Index(Cri)
- 70
- Colour Temperature
- 5000 K
- Depth
- 50mm
- Detection Angle
- 120°
- Detection Range
- 10m
- Dimensions
- (H)216 mm x (W)190 mm x (D)50 mm
- Dimmable
- No
- Efficacy Rating
- 130
- Energy Rating
- A
- Energy Saving
- Yes
- Finish
- Black
- Guarantee
- 5 Years
- Height
- 216mm
- IP Rating
- IP65
- Ik Rating
- IK08
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Led Brand
- Lumiled
- Lumens Output
- 1300lm 1950lm 2600lm 3900lm
- Lux Adjustment
- Yes
- Mounting
- Surface
- Operating Temperature Range
- -20 - 40°C
- Operating Voltage Range
- 100-277V
- Packaging Types
- Each
- Photocell
- Yes
- Power Rating
- 10W 15W 20W 30W
- Sensor
- PIR
- Timer Adjustment
- 8 Secs - 12 Mins
- Unspsc V18
- 39111611
- Unspsc V24
- 39111611
- Weight
- 1.26820kg
- Width
- 190mm
