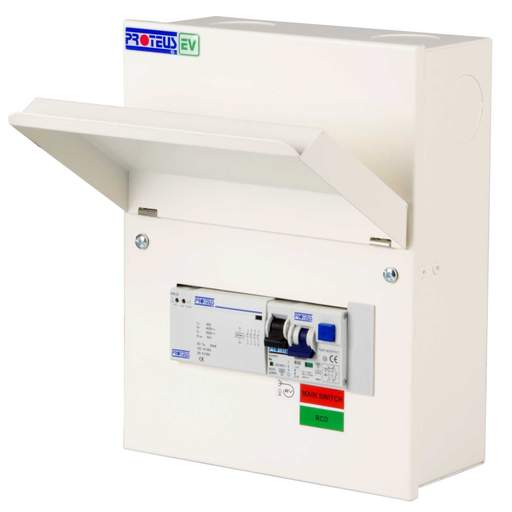

Proteus EV 32A EV Metal Clad Distribution Board with PME Fault Detection
Part Code: AEV32PME
Stock Code: 2658-3610
Proteus EV 32A EV Metal Clad Distribution Board with PME Fault Detection
Part Code: AEV32PME
Stock Code: 2658-3610
Features
- PME fault detection of over/under voltage to reg. 722.411.4.1 (iv) of BS 7671
- Automatic disconnection of phase, neutral and earth
- Complete with ‘Low Noise’ 40 A 4P Contactor which offers zero-hum
- 32A DP Type A RCBO
- Pre-wired in non-combustible metal enclosures
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Selection of Knockouts / Cutouts
- Colour
- Matt White
- Current Rating
- 32A
- Depth
- 119mm
- Dimensions
- (H)256 mm x (W)201 mm x (D)119 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 256mm
- IP Rating
- IP4XC
- Incoming Device
- 32A DP RCBO Type A
- Incoming Terminal Capacity
- 25mm²
- Material
- Powder Coated Steel
- Mounting
- Surface
- Number of Modules
- 8
- Number of Outgoing Ways
- 1
- Packaging Types
- Each
- Product Range
- Proteus EV
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BSEN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.50000kg
- Width
- 201mm
