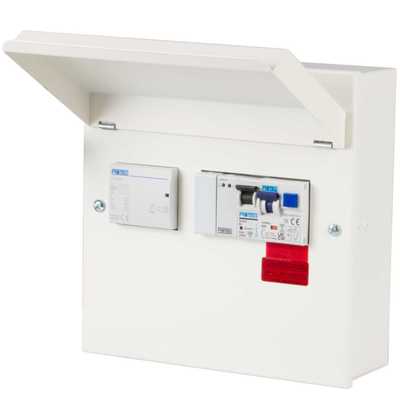

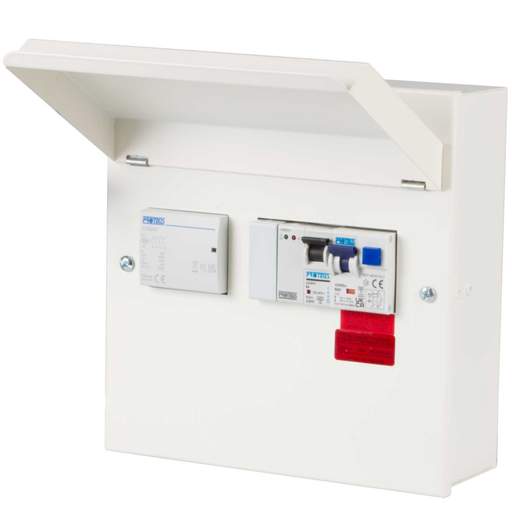

Proteus EV 40A EV Metal Clad Distribution Board with PME Fault Detection

  • Part Code: AEV40PME
  • Stock Code: 2658-3613
Proteus EV
Proteuscon_aev40pme_b4d9117317b1ccc67d6c63c8dd6ee315
  • PME fault detection of over/under voltage to reg. 722.411.4.1 (iv) of BS 7671
  • Automatic disconnection of phase, neutral and earth
  • Complete with ‘Low Noise’ 40 A 4P Contactor which offers zero-hum
  • 40A DP Type A RCBO
  • Pre-wired in non-combustible metal enclosures
  • Suitable For 7.2kW SP EV Charger

Specification

Cable Entry Selection of Knockouts / Cutouts
Colour Matt White
Current Rating 40A
Depth 119mm
Dimensions (H)225 mm x (W)225 mm x (D)119 mm
Door Type Top Hinged
Guarantee 10 Years
Height 225mm
IP Rating IP4XC
Incoming Device 40A DP RCBO Type A
Incoming Terminal Capacity 25mm²
Material Powder Coated Steel
Mounting Surface
Number of Modules 8
Number of Outgoing Ways 1
Packaging Types Each
Product Range Proteus EV
Rcd Type A
Short Circuit Rating 6kA
Standards BSEN 61439-3
Surge Protection Fitted No
Surge Protection Ready No
Unspsc 39121110
Voltage Rating 230V
Weight 3.5kg
Width 225mm
