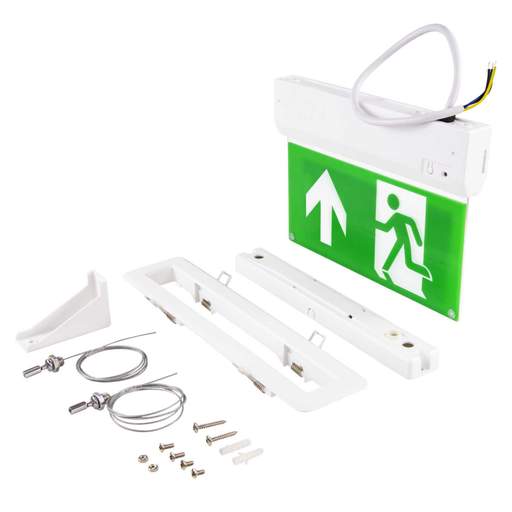

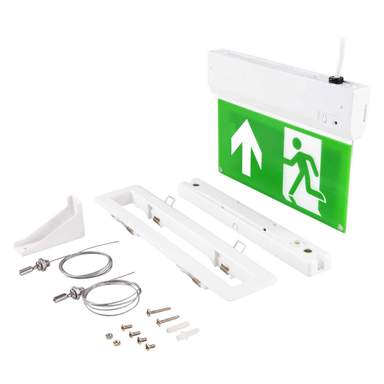

Fusion 2.7W LED 5-in-1 Emergency Exit Sign
Part Code: FE3/5IN1
Stock Code: 2658-8812
Fusion 2.7W LED 5-in-1 Emergency Exit Sign
Part Code: FE3/5IN1
Stock Code: 2658-8812
Features
- 5 installation methods: ceiling, suspended, recessed, side and wall mounted
- Suitable for maintained / non-maintained operation [dual technology]
- Polycarbonate housing
- Integrated test button
- Emergency duration: 3 hrs
- Emergency lumen output: 14 lm
- Lumen output: 23 lm
- Supplied with up legends

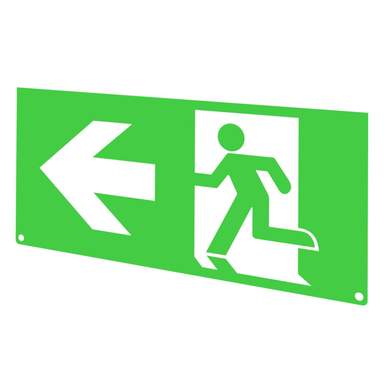

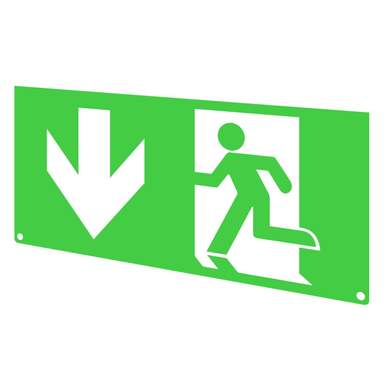

- Alternative legends available - sold separately [FE3/5IN1AD] and [FE3/5IN1ALR]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Battery Type
- NiCad
- Class Type
- Class 1
- Colour
- Green/White
- Colour Temperature
- 6500 K
- Compliance
- UKCA, CE
- Depth
- 28mm
- Dimensions
- (H)180 mm x (W)264 mm x (D)28 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Energy Saving
- Yes
- Finish
- Green/White
- Guarantee
- 2 Years
- Height
- 180mm
- IP Rating
- IP20
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Led Indication
- Yes
- Legend
- Exit Arrow Up
- Lumens Output
- 23lm
- Material
- Polycarbonate
- Mounting
- Ceiling / Recessed / Side / Suspended / Wall
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Box
- Power Rating
- 2.7W
- Supplied With
- Legend and fixings
- Test Button
- Yes
- Type
- Standard
- Unspsc V18
- 39111708
- Unspsc V24
- 39111708
- Video Url
- https://www.youtube.com/embed/1eYJMt_wOts
- Voltage Rating
- 230V
- Weight
- 0.43000kg
- Width
- 264mm
