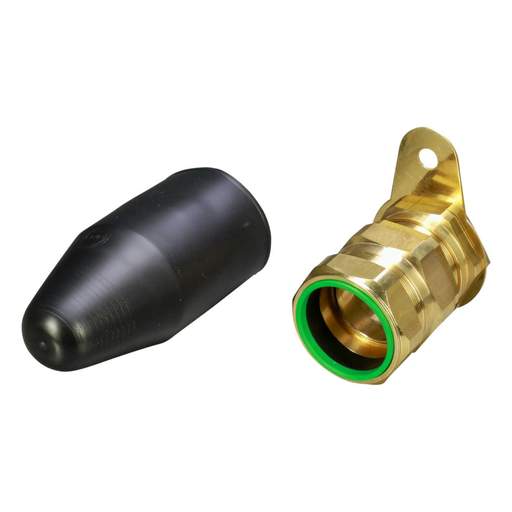

CMP 63S M63 E1FW Cable Gland Pack (Pack of 1)
Part Code: 63SE1FW2RZ
Stock Code: 2658-9028
CMP 63S M63 E1FW Cable Gland Pack (Pack of 1)
Part Code: 63SE1FW2RZ
Stock Code: 2658-9028
Features
- E1FW Globally Approved, Explosive Atmosphere Cable Gland
- Metal-to-metal armour clamping
- Displacement type flameproof inner seal
- Controlled outer ‘load retention’ seal
- Unique OSTG prevents overtightening
- Designed to prevent Coldflow
- -60˚C to 130˚C
- Globally marked, IECEx, ATEX & cCSAus
- Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
- EMC tested
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CMP
- Atex Classificatio
- II 2G 1D, Ex db IIC Gb, Ex eb IICGb, Ex ta III CDa, II 3G Ex nR IIC Gc, I M2, Ex db I Mb, Ex eb I Mb
- Cable Entry
- 45.6 - 59.4 mm
- Certification Code
- CML18ATEX1324X, CML18ATEX4316X
- Compliance
- EN 60079-0,1,7,15,31
- Dimensions
- (L)117 mm
- Finish
- Brass
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 117mm
- Material
- Brass, Electroless Nickel Plated Brass, Aluminium
- Packaging Types
- Pack
- Product Range
- E1FW Cable Gland
- Size
- M63
- Standards
- BS 6121:Part 1:1989, IEC 62444, EN 62444
- Suitable For
- All types of Steel & Aluminium Wire Armoured Cables
- Supplied With
- 1 x Brass Gland, 1 x Brass Locknut, 1 x Brass Earth Tag, 1 x PVC Shroud and 1 x IP Washer
- Thread Size
- 63mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 2.42000kg
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
