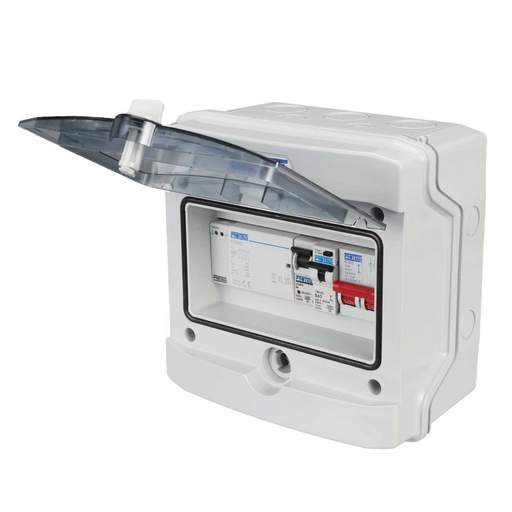

Proteus EV 40A 16kA EV Distribution Boards with PME Fault Detection IP65
Part Code: AEV40PMESIP
Stock Code: 2660-3425
Proteus EV 40A 16kA EV Distribution Boards with PME Fault Detection IP65
Part Code: AEV40PMESIP
Stock Code: 2660-3425
Features
- No earth rods required
- PME fault detection of over/under voltage to reg. 722.411.4.1 (iv) of BS 7671
- Automatic disconnection of phase, neutral and earth
- 63A DP Isolator feeding 40A DP RCBO Type A and 40A 4 Pole N/O contactor
- 7.2 kW rating
- Pre-wired in IP65 rated ABS enclosure
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Selection of Knockouts / Cutouts
- Colour
- Grey
- Current Rating
- 40A
- Depth
- 120mm
- Dimensions
- (H)201 mm x (W)202 mm x (D)120 mm
- Door Type
- Side Hinged
- Guarantee
- 1 Year
- Height
- 201mm
- IP Rating
- IP65
- Incoming Device
- 63A DP Isolator
- Incoming Terminal Capacity
- 50mm²
- Material
- ABS
- Mounting
- Surface
- Number of Outgoing Ways
- 1
- Packaging Types
- Each
- Product Range
- Proteus EV
- Short Circuit Rating
- 16kA
- Standards
- BSEN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.20000kg
- Width
- 202mm
