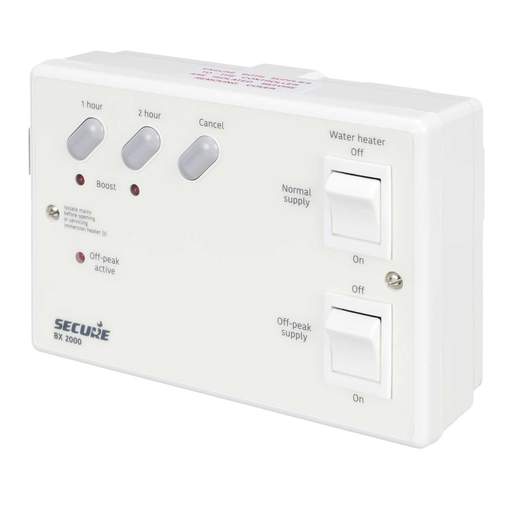

Secure BX2000 Water Heating Boost Controller
Part Code: NU5300209301
Stock Code: 2660-8816
Secure BX2000 Water Heating Boost Controller
Part Code: NU5300209301
Stock Code: 2660-8816
Features
- For use with immersion heaters that are controlled by the electricity company's radio teleswitch, radio telemeter or tariff time switch
- Allows the user to top up the hot water if extra supplies are needed during the day time with the main water heating taking place overnight using off peak electricity
- Incorporates 2 double pole switches - 1 for 24 hour supply and 1 for off peak
- 1 or 2 hour boost with separate indicator lights
- Always gives priority to off peak supply
- Accepts all incoming and outgoing wiring for single, dual or two separate 3kW immersion heater applications
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Boost
- 1 or 2 hrs
- Colour
- White
- Compliance
- BEAB
- Current Rating
- 13A
- Depth
- 62mm
- Dimensions
- (H)115 mm x (W)170 mm x (D)62 mm
- Finish
- White
- Guarantee
- 7 Years
- Height
- 115mm
- IP Rating
- IP30
- Material
- Thermoplastic
- Mounting
- Wall
- Packaging Types
- Each
- Product Range
- BX2000
- Standards
- BSEN 60730-2-7
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 230V
- Weight
- 0.68kg
- Width
- 170mm
