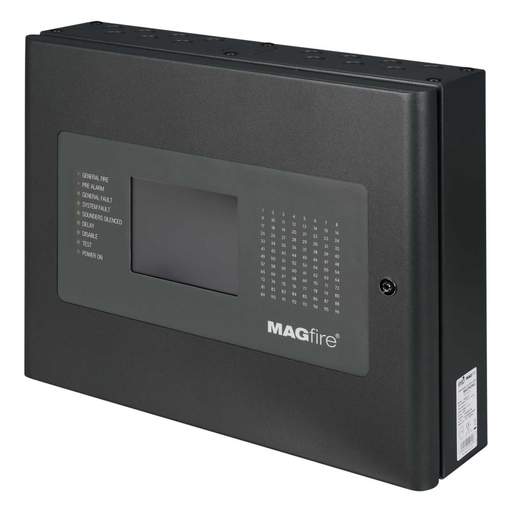

Magfire MAGPRO 96 Zone Addressable Fire Panel Grey
Part Code: MAGPRO96G
Stock Code: 2663-7388
Magfire MAGPRO 96 Zone Addressable Fire Panel Grey
Part Code: MAGPRO96G
Stock Code: 2663-7388
Features
- 96 Zones
- Maximum 250 devices per loop
- Memory Log of 10,000 events
- Networkable up to 32 Panels
- 320 x 240 pixel touch screen display
- Micro USB port for PC connection
- Loop and battery calculator software included
- Certified to EN54–2/4
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- ESP
- Auxiliary Power Supply
- 500mA @ 24V DC
- Battery Type
- Sealed Lead Acid
- Colour
- Grey
- Depth
- 125mm
- Dimensions
- (H)350 mm x (W)456 mm x (D)125 mm
- Guarantee
- 3 Years
- Height
- 350mm
- Internal Power Supply
- 24V DC Nominal
- Maximum Detectorsper Zone
- 16
- Number of Zones
- 96
- Packaging Types
- Each
- Product Range
- MAGFIRE
- Standards
- EN 54
- Total Current Output
- 500mA
- Type
- Fire Panel
- Unspsc V18
- 46182504
- Unspsc V24
- 46182504
- Weight
- 5.50000kg
- Width
- 456mm
