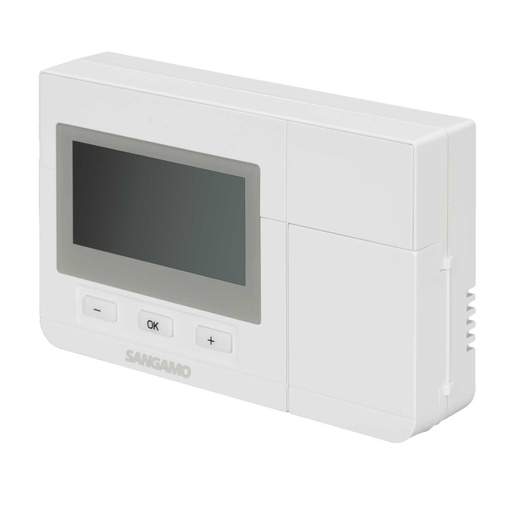

Sangamo Electronic Programmable Room Thermostat
Part Code: CHPRSTATDP
Stock Code: 2663-7409
Sangamo Electronic Programmable Room Thermostat
Part Code: CHPRSTATDP
Stock Code: 2663-7409
Features
- 24 or 7 day programmable
- 6 time/temperature events per day
- Permanent, timed and temporary override features
- Electronic sensor for accurate and responsive performance
- TPI [time proportional and integral] control for heating efficiency
- Optimum start/ delay start and optimum stop for additional efficiency
- Summer/winter time change
- 5°C to 35°C set temperature range
- 0.5°C and 1°C temperature swing adjustment
- 5°C frost protection
- 3A contact rating [volt free]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Backlight
- Yes
- Battery Size
- AAA
- Change Over Contacts
- No
- Colour
- White
- Compliance
- CE
- Current Rating
- 3A
- Current Rating Inductive
- 3A
- Depth
- 32.1mm
- Dimensions
- (H)88.6 mm x (W)140 mm x (D)32.1 mm
- Display Type
- LCD
- Finish
- White
- Guarantee
- 3 Years
- Height
- 88.6mm
- Material
- ABS
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- 0°C
- Mounting
- Wall
- Number of Batteries
- 4
- Packaging Types
- Each
- Programming Type
- 24 Hour or 7 Days
- Standards
- EN 60730-1, EN 60730-2-9, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC
- Tamper Proof
- No
- Temperature Range
- 5 - 35°C
- Unspsc V18
- 39122229
- Unspsc V24
- 39122229
- Voltage Free Contacts
- Yes
- Voltage Rating
- 230V
- Weight
- 0.32kg
- Width
- 140mm
- Wireless
- No
