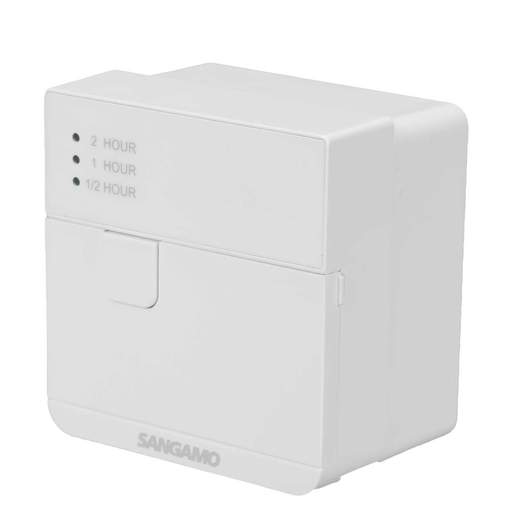

Sangamo 16A Powersaver Plus Electronic Boost Controller
Part Code: PSPB
Stock Code: 2663-7430
Sangamo 16A Powersaver Plus Electronic Boost Controller
Part Code: PSPB
Stock Code: 2663-7430
Features
- 30 minutes, 1 hour and 2 hour boost function
- Clear Indication LEDs
- Single gang surface [mount box included] or flush mounting
- 16A switch rating
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Boost
- 30 mins, 1 or 2 hrs
- Colour
- White
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 35mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)35 mm
- Finish
- White
- Fuse Fitted
- No
- Guarantee
- 3 Years
- Height
- 86mm
- IP Rating
- IP20
- Material
- ABS
- Maximum Operating Temperature
- 40°C
- Minimum Operating Temperature
- -10°C
- Mounting
- Wall
- Neon
- Yes
- Packaging Types
- Each
- Product Range
- Powersaver
- Standards
- BS EN 60730
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 230V
- Weight
- 0.2kg
- Width
- 86mm
