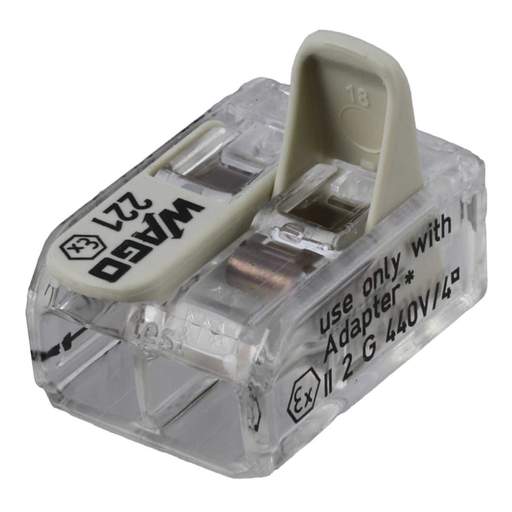

Wago 20A Compact 2 Way Ex Connector 4mm Terminal Block (Pack of 100)
Part Code: 221-482
Stock Code: 2665-3531
Wago 20A Compact 2 Way Ex Connector 4mm Terminal Block (Pack of 100)
Part Code: 221-482
Stock Code: 2665-3531
Features
- 2 Conductor terminal block with operating levers
- Compact lever connector allows fast wiring for solid, stranded and flexible conductors safely due to CAGE CLAMP connection
- For conductor sizes 0.14mm - 4mm
- Suitable for all wire types
- Rated current [Ex e II]: 24.5A
- Continuous operating temperature: -55 … +105 °C
- ATEX [Ex 2 II G], IECEx [Ex eb IIC Gb] Zone 1, 2
- IECEX [Ex eb IIC Gb], American Ex [AEx eb IICGb] / Class 1, Zone 1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Transparent
- Current Rating
- 20A
- Dimensions
- (L)18.6 mm x (H)8.4 mm x (W)13.2 mm
- Guarantee
- 1 Year
- Height
- 8.4mm
- Length
- 18.6mm
- Number of Ways
- 2
- Packaging Types
- Box
- Product Range
- 221 EX Series
- Terminal Capacity
- 4mm²
- Unspsc V18
- 39121409
- Unspsc V24
- 39121409
- Voltage Rating
- 440V AC
- Weight
- 0.00170kg
- Width
- 13.2mm
