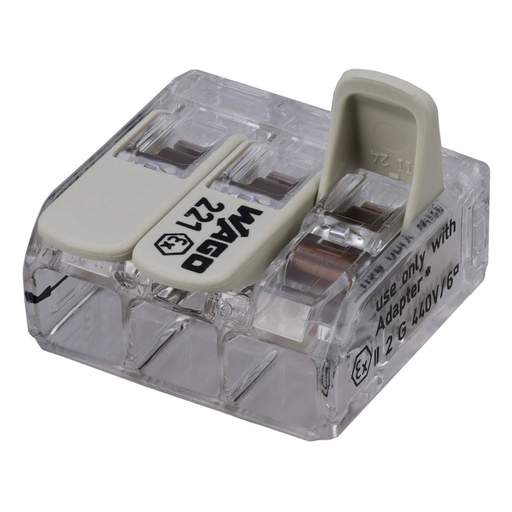

Wago 30A Compact 3 Way Ex Connector 6mm Terminal Block (Pack of 30)
Part Code: 221-683
Stock Code: 2665-3582
Wago 30A Compact 3 Way Ex Connector 6mm Terminal Block (Pack of 30)
Part Code: 221-683
Stock Code: 2665-3582
Features
- 3 Conductor terminal block with operating levers
- Compact lever connector allows fast wiring for solid, stranded and flexible conductors safely due to CAGE CLAMP connection
- For conductor sizes 0.5mm - 6mm
- Suitable for all wire types
- Rated current [Ex e II]: 37A
- Continuous operating temperature: -55 … +105 °C
- ATEX [Ex 2 II G], IECEx [Ex eb IIC Gb] Zone 1, 2
- IECEX [Ex eb IIC Gb], American Ex [AEx eb IICGb] / Class 1, Zone 1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Transparent
- Current Rating
- 30A
- Dimensions
- (L)21.1 mm x (H)10.1 mm x (W)22.9 mm
- Guarantee
- 1 Year
- Height
- 10.1mm
- Length
- 21.1mm
- Number of Ways
- 3
- Packaging Types
- Box
- Product Range
- 221 EX Series
- Terminal Capacity
- 6mm²
- Unspsc V18
- 39121409
- Unspsc V24
- 39121409
- Voltage Rating
- 440V AC
- Weight
- 0.00430kg
- Width
- 22.9mm
