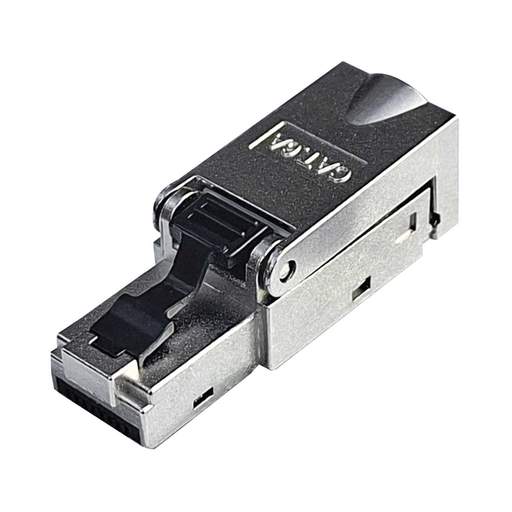

Emitex CAT6a FTP Sheilded Field Termination Plug
Part Code: EM01.210
Stock Code: 2671-5808
Emitex CAT6a FTP Sheilded Field Termination Plug
Part Code: EM01.210
Stock Code: 2671-5808
Features
- CAT6a Class EA field termination plug
- Quick and easy to install
- Fully shielded die-cast body
- Suitable for use with a wide range of cable outer diameter and core sizes = 6 - 9mm cable OD, 22-27 AWG cores [core including insulation up to OD 1.6mm]
- Reusable [27AWG cable only reusable up to 5 times]
- Toolless termination design
- T568A & B colour coded
- Rated for 750 mechanical cycles
- Compatible with Profinet installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Emitex
- Category Type
- CAT6A
- Colour
- Silver
- Compliance
- UKCA, CE
- Depth
- 15mm
- Dimensions
- (L)68 mm x (W)16 mm x (D)15 mm
- Guarantee
- 1 Year
- Length
- 68mm
- Material
- Die-Cast Zinc Alloy
- Packaging Types
- Each
- Size
- 16 x 15mm
- Type
- Termination Plug
- Unspsc V18
- 39121444
- Unspsc V24
- 39121444
- Video Url
- https://www.youtube.com/embed/NKFJh1Et7u0
- Weight
- 0.01000kg
- Width
- 16mm
