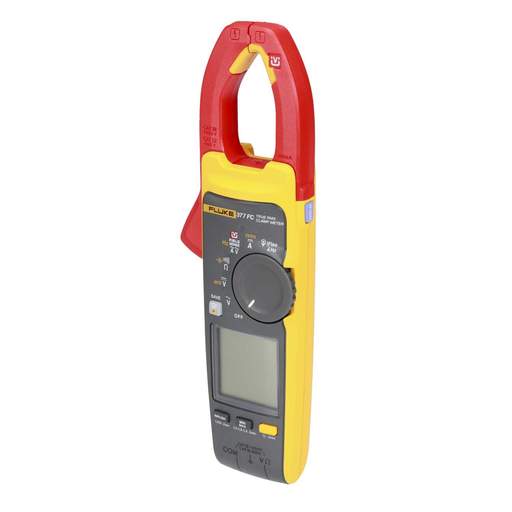

Fluke 377FC True RMS AC/DC Clamp Meter with Non-Contact Voltage and iFlex
Part Code: FLUKE 377FC
Stock Code: 2674-4377
Fluke 377FC True RMS AC/DC Clamp Meter with Non-Contact Voltage and iFlex
Part Code: FLUKE 377FC
Stock Code: 2674-4377
Features
- Measure voltage and current with the clamp jaw
- Faster, safer testing without touching a live wire using FieldSense™ technology
- Complete 3 phase voltage and current tests in 3 quick steps
- AC current up to 2500A using the iFlex flexible current probe
- Full set of phase to ground and phase to phase values calculated
- Fluke connect displays values on your smart phone and saved to the cloud via Fluke Connect software [smart phone, wireless service and data plan not included with purchase]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 999.9A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Capacitance Measurement
- 1000µF
- Compliance
- CE
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Current Measurement
- 999.9A DC
- Dc Voltage Measurement
- 1000V DC
- Depth
- 47mm
- Dimensions
- (L)274 mm x (W)86 mm x (D)47 mm
- Frequency Measurement
- 500 Hz
- Guarantee
- 3 Years
- IP Rating
- IP30
- Jaw Opening Capability
- 34mm
- Length
- 274mm
- Number of Batteries
- 2
- Operating Temperature Range
- -10 - 50°C
- Packaging Types
- Each
- Product Range
- Fluke Clamp Meters
- Resistance Measurement
- 60 kΩ
- Safety Range
- CAT III 1000 V / CAT IV 600 V
- Standards
- IEC/EN 61010
- Storage Temperature Range
- -40 - 60°C
- Supplied With
- 18-inch iFlex® Flexible Current Probe, TPAK Magnetic Hanging Strap, Premium Carrying Case, TL224 Test Leads, TP175 Test Probes, AC285 Black Grounding Clip and quick reference guide
- Type
- TRMS Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Weight
- 0.50000kg
- Width
- 86mm
