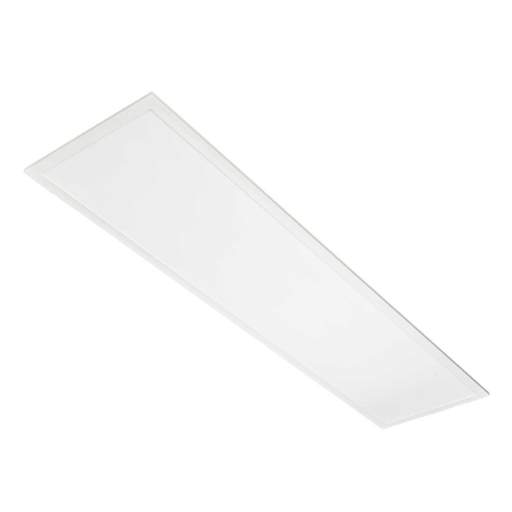

Fusion 36W 1200mm x 300mm LED Backlit Panel 6500K
Part Code: FP123DW
Stock Code: 2676-5521
Fusion 36W 1200mm x 300mm LED Backlit Panel 6500K
Part Code: FP123DW
Stock Code: 2676-5521
Features
- TP[a] rated diffuser
- Uniform light distribution
- Quick, easy installation with plug and play driver
- Beam angle: 120°
- LED lifetime: 50,000 hrs [L70 / B50]
- Optional emergency pack available - sold separately [FE3P]
- 5 Year guarantee and 1 year on-site warranty
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Beam Angle
- 120°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 80
- Colour Temperature
- 6500 K
- Compliance
- UKCA, CE
- Depth
- 34mm
- Dimensions
- (L)1195 mm x (W)295 mm x (D)34 mm
- Dimmable
- No
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 5 Years
- IP Rating
- IP20
- Lamp Life
- 50000h
- Lamp Type
- Integrated LED
- Length
- 1195mm
- Lumens Output
- 3820lm
- Material
- Aluminium Frame / Self-Extinguishing TP[A] Diffuser
- Mounting
- Recessed
- Operating Temperature Range
- -10 - 25°C
- Packaging Types
- Box
- Power Rating
- 36W
- Product Range
- Backlit
- Suitable For
- 1200 x 300mm T-Grid 15/25mm Suspended Ceiling
- Supplied With
- LED Driver
- Unspsc V18
- 39111505
- Unspsc V24
- 39111505
- Voltage Rating
- 230V
- Weight
- 3.75000kg
- Width
- 295mm
