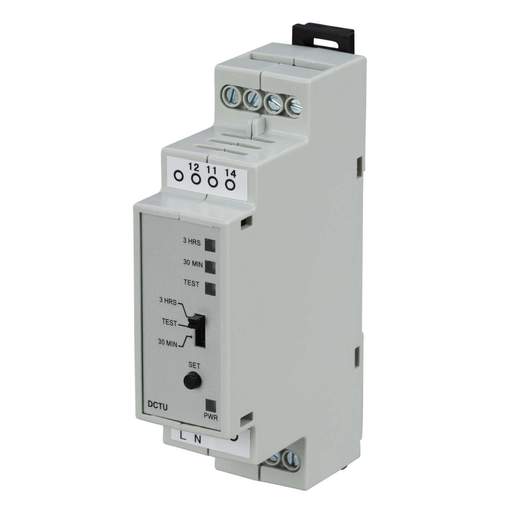

Garo 12A Central Test Unit for Emergency Lighting
Part Code: DCTU
Stock Code: 0228-7843
Garo 12A Central Test Unit for Emergency Lighting
Part Code: DCTU
Stock Code: 0228-7843
Features
- GARO Central Test Unit - designed to test emergency lighting systems battery pack[s]
- It achieves this by temporarily disconnecting the mains supply for the time selected
- Includes normally closed contact to test a single circuit, and a normally open contact to test multiple circuits
- DIN Rail mounting within distribution board
- LED Operating Indicator
- Operators can select between three timing options - 5 seconds, 30 minutes and 3 hours
- Fully compliant with 18th Edition
- Please note : 22mm width
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Contact Configuration
- 1 NC + 1 NO
- Current Rating
- 12A
- Depth
- 59mm
- Dimensions
- (H)90 mm x (W)22 mm x (D)59 mm
- Guarantee
- 3 Years
- Height
- 90mm
- Mounting
- DIN Rail
- Number of Modules
- 1
- Packaging Types
- Each
- Unspsc V18
- 39111710
- Unspsc V24
- 39111710
- Voltage Rating
- 230V
- Weight
- 0.10200kg
- Width
- 22mm
