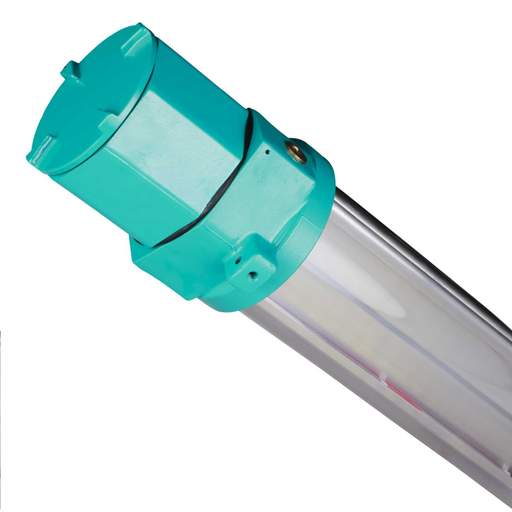

Petrel 2 x 36W 4ft Exd Zone 1 High Frequency Fluorescent Fitting
Part Code: 7236/S4/240/50
Stock Code: 2682-2239
Petrel 2 x 36W 4ft Exd Zone 1 High Frequency Fluorescent Fitting
Part Code: 7236/S4/240/50
Stock Code: 2682-2239
Features
- High impact resistant polycarbonate lens
- Anodised marine grade aluminium
- 50,000 hour electronic ballast
- EOL lamp protection
- Vibration resistant
- Easy lamp change system
- Threaded end cap
- Vertical and horizontal threaded mounting points
- Terminals accessed via threaded end cover as is the gear tray which slides out
- Requires 2 x 36W T8 tubes [not included]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db IIB/IIC Gb T5, Ex tb IIIC T4 Db
- Cable Entry
- 4 x M20
- Certification Code
- CML14ATEX 1028X IECEx CML140012X
- Depth
- 158mm
- Dimensions
- (L)1362 mm x (W)140 mm x (D)158 mm
- Fixing Centres
- 1242mm
- Gear Option
- Electronic High Frequency
- Guarantee
- 1 Year
- IP Rating
- IP66
- Lamp Included
- No
- Lamp Type
- T8
- Length
- 1362mm
- Material
- Aluminium / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 55°C
- Packaging Types
- Each
- Power Rating
- 72W
- Product Range
- 7 Series
- Standards
- EN 60079, IEC 60079
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 230V
- Weight
- 4.70000kg
- Width
- 140mm
- Zone Rating
- Zone 1 Zone 2 Zone 22
