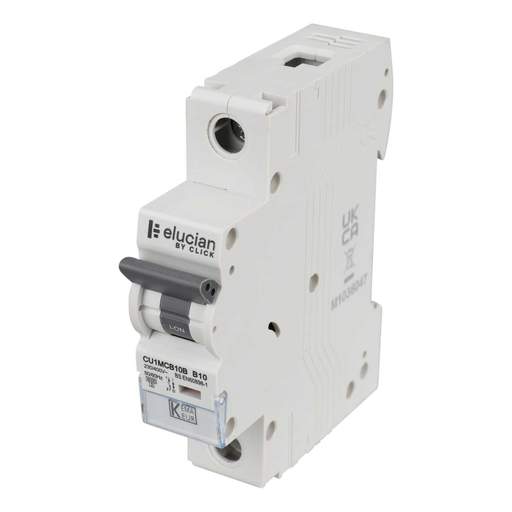

Scolmore Click Elucian 10A Single Pole 6kA B Curve MCB
Part Code: CU1MCB10B
Stock Code: 2682-9154
Scolmore Click Elucian 10A Single Pole 6kA B Curve MCB
Part Code: CU1MCB10B
Stock Code: 2682-9154
Features
- Lockable switch [with compatible kit]
- Thermal / Magnetic trip release
- Large terminal capacity
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 10A
- Depth
- 76.6mm
- Dimensions
- (H)85.3 mm x (W)18 mm x (D)76.6 mm
- Guarantee
- 3 Years
- Height
- 85.3mm
- Incoming Terminal Capacity
- Flexible 16mm², Rigid 25mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Outgoing Terminal Capacity
- Flexible 16mm², Rigid 25mm²
- Packaging Types
- Each
- Product Range
- Elucian
- Short Circuit Rating
- 6kA
- Standards
- BS EN 60898-1
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.09824kg
- Width
- 18mm
