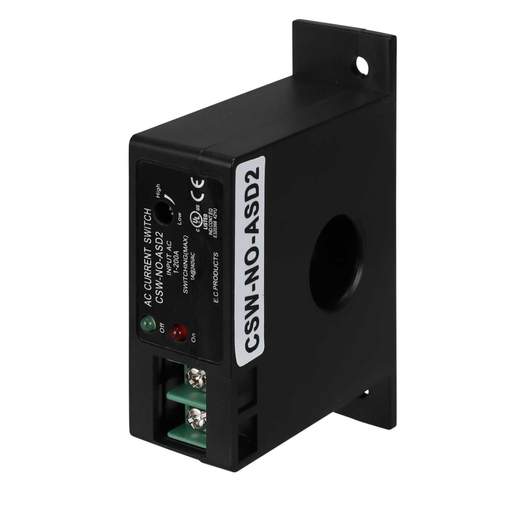

ECP 1.0-200A 230V AC Solid Core Adjustable Setpoint Current Switch
Part Code: CSW-NO-ASD2
Stock Code: 2684-1358
ECP 1.0-200A 230V AC Solid Core Adjustable Setpoint Current Switch
Part Code: CSW-NO-ASD2
Stock Code: 2684-1358
Features
- The CSW series of AC current switches activate a normally open [NO] contact closure via a solid-state switch whenever the monitored primary circuit current exceeds a pre-set level
- Auto-ranging up to 200A
- Power induced from monitored conductor
- True digital switching and very low leakage
- Easy field adjustment with status LED’s
- Adjustable setpoint
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Contact Configuration
- 1 NO
- Current Rating
- 200A
- Depth
- 25mm
- Dimensions
- (L)85 mm x (H)61 mm x (W)90 mm x (D)25 mm
- Height
- 61mm
- Length
- 85mm
- Packaging Types
- Each
- Unspsc V18
- 40101605
- Unspsc V24
- 40101605
- Voltage Rating
- 230V
- Weight
- 0.094kg
- Width
- 90mm
