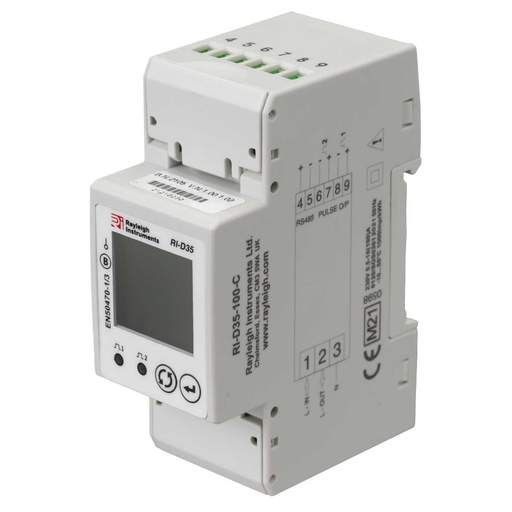

Rayleigh 100A Single Phase MID Certified Energy Meter with Modbus and Dual Pulse
Part Code: 30090100
Stock Code: 2685-3847
Rayleigh 100A Single Phase MID Certified Energy Meter with Modbus and Dual Pulse
Part Code: 30090100
Stock Code: 2685-3847
Features
- 100A direct connected
- High definition LCD display with white backlight
- Import and export energy measurement
- Two pulse outputs
- Two module width DIN rail mounted
- MID B D Certified
- LED pulse indication
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Rayleigh
- Colour
- White
- Depth
- 47mm
- Dimensions
- (H)90 mm x (W)35 mm x (D)47 mm
- Display Type
- LCD Display
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- Maximum Current
- 100A
- Number of Modules
- 2
- Packaging Types
- Each
- Previously Known As
- RI-D35-100-C
- Standards
- IEC/EN61010, IEC/EN50470-1
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Rating
- 230V
- Weight
- 0.17kg
- Width
- 35mm
