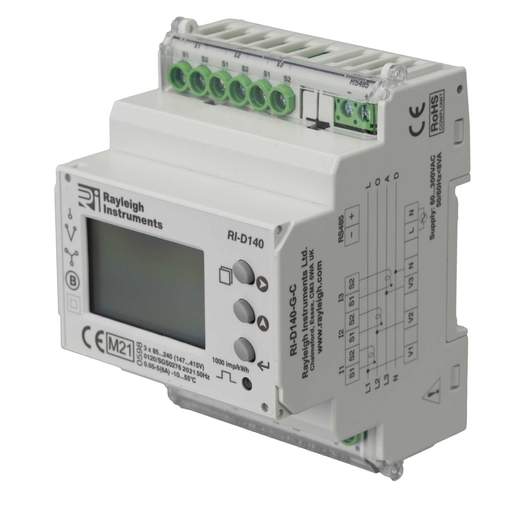

Rayleigh 3 Phase Multifunction Energy Meter MID Certified with Modbus
Part Code: 30011400
Stock Code: 2685-3850
Rayleigh 3 Phase Multifunction Energy Meter MID Certified with Modbus
Part Code: 30011400
Stock Code: 2685-3850
Features
- MID multifunction power meter
- Single phase or three phase network compatible
- Programmable voltage and current transformer ratio
- True RMS measurement
- High definition white backlit LCD display
- MID B D certified
- Simple programming and operation and RS485 Modbus output
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Rayleigh
- Colour
- White
- Compliance
- UKCA, CE
- Depth
- 66.3mm
- Dimensions
- (H)90 mm x (W)70 mm x (D)66.3 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 90mm
- Maximum Current
- 6A
- Number of Modules
- 4
- Number of Phases
- 3
- Packaging Types
- Each
- Previously Known As
- RI-D140-G-C
- Product Range
- RI-D140
- Standards
- IEC/EN61010, IEC/EN50470-1
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Rating
- 230V 415V
- Weight
- 0.21kg
- Width
- 70mm
