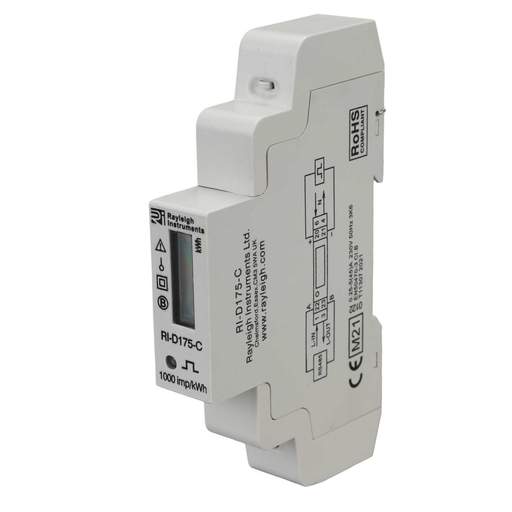

Rayleigh 45A Single Phase MID Certified Energy Meter with Modbus
Part Code: 05200500
Stock Code: 2685-3862
Rayleigh 45A Single Phase MID Certified Energy Meter with Modbus
Part Code: 05200500
Stock Code: 2685-3862
Features
- 45A direct connected
- Single module width DIN rail mounted
- Import active energy measurement
- Modbus -RTU pulse
- Single pulse output
- MID B D certified
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Rayleigh
- Colour
- White
- Depth
- 60mm
- Dimensions
- (H)112 mm x (W)17.5 mm x (D)60 mm
- Display Type
- LCD Display
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 112mm
- Maximum Current
- 45A
- Number of Modules
- 1
- Number of Phases
- 1
- Packaging Types
- Each
- Previously Known As
- RI-D175-C
- Standards
- IEC/EN61010, IEC/EN50470-1
- Unspsc V18
- 39121106
- Unspsc V24
- 39121106
- Voltage Rating
- 230V
- Weight
- 0.12kg
- Width
- 17.5mm
