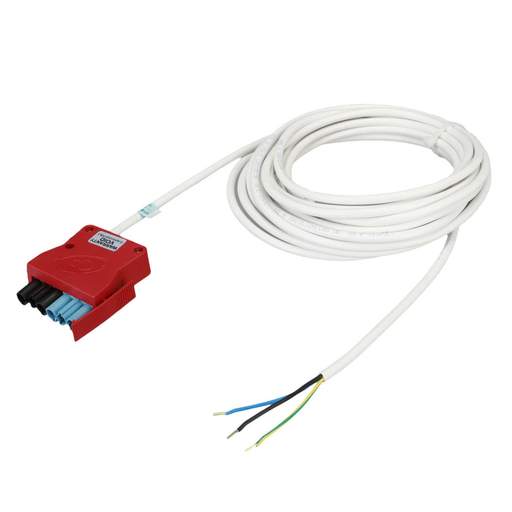

CP Electronics Legrand Vitesse 8m 3 Core Emergency Luminaire Lead Red Plug Black / Blue Coded
Part Code: BVITM6L308100R-EM
Stock Code: 2685-6409
CP Electronics Legrand Vitesse 8m 3 Core Emergency Luminaire Lead Red Plug Black / Blue Coded
Part Code: BVITM6L308100R-EM
Stock Code: 2685-6409
Features
- Black / Blue coded luminaire connector
- 6 pole industry standard GST style connectors
- For non-switched emergency luminaires
- Double latch feature to prevent loose connections
- Free end has a 70mm strip for the inner cores with a 10mm ferrule
- Switching luminaire lead has a male connector which will connect to an LCM output, ceiling rose or end of line tee module
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Length
- 8m
- Cable Size
- 1mm²
- Colour
- Red
- Current Rating
- 16A
- Guarantee
- 5 Years
- Material
- PC / ABS
- Number of Cores
- 3
- Number of Poles
- 6 Pole
- Packaging Types
- Each
- Product Range
- Vitesse
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 230V
- Weight
- 0.46600kg
