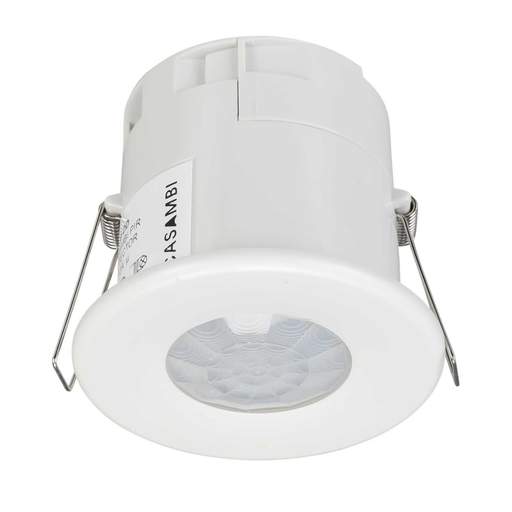

CP Electronics Legrand Casambi Wireless Mesh Compact PIR Detector
Part Code: EBDSPIR-CB-DD
Stock Code: 2685-6421
CP Electronics Legrand Casambi Wireless Mesh Compact PIR Detector
Part Code: EBDSPIR-CB-DD
Stock Code: 2685-6421
Features
- Provides movement and daylight readings to the Casambi network
- Programmable time delay and lux settings with mobile app
- Provides automatic control for lighting and ventilation loads
- Output connections to convert or retrofit any lighting fixtures to become part of the Casambi smart lighting system
- DALI dimming output [upto 10 lighting drivers]
- Built-in switched relay and DALI dimming output channels
- 10A relay output
- Light level sensing
- Ideal for office or general standard ceiling height applications
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CP Electronics Legrand
- Class Type
- Class 2
- Colour
- White
- Current Rating
- 10A
- Cut Out
- 64mm
- Depth
- 65mm
- Detection Angle
- 360°
- Detection Range
- 7m
- Diameter
- 76mm
- Dimensions
- (Dia)76 mm x (D)65 mm
- Guarantee
- 5 Years
- IP Rating
- IP40
- Lux Adjustment
- Yes
- Material
- ABS / Polycarbonate
- Maximum Switching Load
- Incandescent - 10A, Fluorescent - 10A, Mains Halogen - 10A, CFL - 10A, Resistive - 10A, LED - 10A, Fans - 10A
- Mounting
- Ceiling / Recessed
- Packaging Types
- Each
- Previously Known As
- AP-EBDSPIR-CB-DD
- Product Range
- Casambi
- Sensor
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.20000kg
