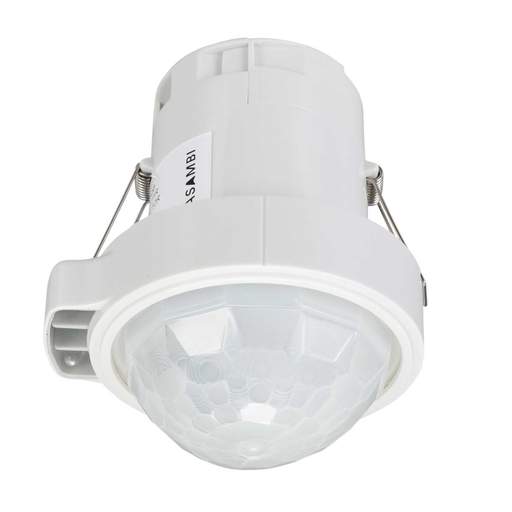

CP Electronics Legrand Casambi Wireless Mesh High Level PIR Detector
Part Code: EBDHS-B-CB-DD
Stock Code: 2685-6427
CP Electronics Legrand Casambi Wireless Mesh High Level PIR Detector
Part Code: EBDHS-B-CB-DD
Stock Code: 2685-6427
Features
- Ground breaking detection range [up to 40m at 15m mounting height]
- Unique lens technology [high sensitivity]
- Mesh network where all the intelligence of the system is replicated in every node
- Simple to use UI
- Multi-pyro design offers greater sensitivity without false triggering
- Ideal for high level / high bay and warehouse applications
- Supplied with adjustable masking shields to tailor detection zones
- Relay and DALI output channels
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- CP Electronics Legrand
- Class Type
- Class 2
- Colour
- White
- Current Rating
- 10A
- Cut Out
- 64mm
- Depth
- 65mm
- Detection Range
- 40m
- Diameter
- 86mm
- Dimensions
- (Dia)86 mm x (D)65 mm
- Guarantee
- 5 Years
- IP Rating
- IP40
- Lux Adjustment
- Yes
- Material
- ABS
- Maximum Switching Load
- Incandescent - 10A, Fluorescent - 10A, Mains Halogen - 10A, CFL - 10A, Resistive - 10A, LED - 10A, Fans - 10A
- Mounting
- Ceiling / Recessed
- Packaging Types
- Each
- Previously Known As
- AP-EBDHS-B-CB-DD
- Product Range
- Casambi
- Sensor
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.20000kg
