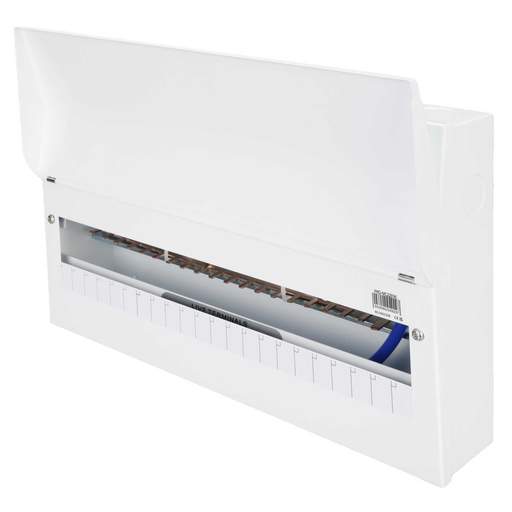

Lewden 22 Way Metal Clad Consumer Unit (No Incomer)
Part Code: PRO-MC22ENC
Stock Code: 2686-4773
Lewden 22 Way Metal Clad Consumer Unit (No Incomer)
Part Code: PRO-MC22ENC
Stock Code: 2686-4773
Features
- Suitable for single module RCBOs
- Knockouts to bottom, back and sides 20mm, 25mm, 32mm
- Supplied complete with single phase distribution busbar and neutral cable
- 1 x Neutral and 1 x Earth bar
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lewden
- Depth
- 106mm
- Dimensions
- (H)266 mm x (W)443 mm x (D)106 mm
- Din Rail
- Yes
- Door Type
- Top Hinged
- Guarantee
- 2 Years
- Height
- 266mm
- IP Rating
- IP2X
- Incoming Device
- Not Supplied
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 22
- Packaging Types
- Each
- Product Range
- PRO
- Standards
- BS EN 61439-3
- Supplied With
- Neutral Cable, Busbar, Earth and Neutral Terminal Bars
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 3.18000kg
- Width
- 443mm
