TIS MFTPRO+ Installation Tester with Earth Resistance Test Leads and EV Adaptor
Part Code: TIS MFTPRO+-EV
Stock Code: 2686-7722
TIS MFTPRO+ Installation Tester with Earth Resistance Test Leads and EV Adaptor
Part Code: TIS MFTPRO+-EV
Stock Code: 2686-7722
Features
- EV Testing capability [supplied with EV test-100 testing adaptor]
- Earth electrode test [supplied with electrodes and leads]
- Phase to phase loop testing
- TRMS for accurate measurement on noisy and distorted circuits
- Power quality analysis of single phase or balanced 3 phase systems
- Displays both L- N, L- PE simultaneously on no trip test
- Accurate PRO-Lock no trip loop test
- Phase sequence measurement
- Accurate and reliable no trip loop testing
- RCD testing up to 1A or 10A with an optional adapter
- Automatic RCD test, 0°, 180°, x 1, x ½, x 5, current with ramp test
- Tripping time of general, selective and delayed RCD's, A, AC and B
- Measurement of voltage, voltage drop , current, active, reactive and apparent power
- Voltage and harmonics up to the 25th
- PC interface integrated Wi-Fi communication
- Software included
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Test Instrument Solutions
- 3 Phase Rotation
- Yes
- Ac Voltage Measurement
- 460V AC
- Batteries Included
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Continuity Range
- 0.01 Ω - 100 Ω
- Depth
- 75mm
- Dimensions
- (H)225 mm x (W)165 mm x (D)75 mm
- Display Type
- LCD
- Earth Electrode Test
- Yes
- Guarantee
- 3 Years
- Height
- 225mm
- Insulation Resistance Measuring Range
- 0.01 MΩ - 199.9 MΩ
- Insulation Test Voltage
- 50V / 100V / 250V / 500V / 1000V
- Loop Impedance Range
- 0.01 Ω - 199 Ω
- Packaging Types
- Each
- Previously Known As
- TISMFTPRO+EV
- Rcd Settings
- ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests
- Rcd Test Range
- 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
- Safety Range
- CAT III 240V to earth, maximum 415V between inputs
- Standards
- BS EN 61557-1-2-3-4-5-6-7 17th Amendment 3 and 18th Edition
- Supplied With

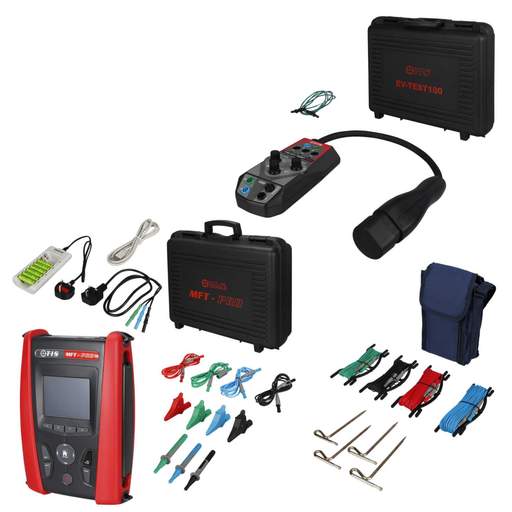

- EV Test-100, 3 Wire lead set with probes and croc clips, Mains plug test lead, Earth Electrodes, Batteries, Neck strap , Harness, Software and Heavy-duty hard carry case with additional storage
- Type
- Multifunction Installation Tester
- Unspsc V18
- 25175003
- Unspsc V24
- 41113682
- Weight
- 1.20000kg
- Width
- 165mm
