Timeguard Flush Mounted Single Channel Occupancy 360° PIR Detector
Part Code: PDFM361AB
Stock Code: 2687-1121
Timeguard Flush Mounted Single Channel Occupancy 360° PIR Detector
Part Code: PDFM361AB
Stock Code: 2687-1121
Features
- Single channel flush ceiling mount

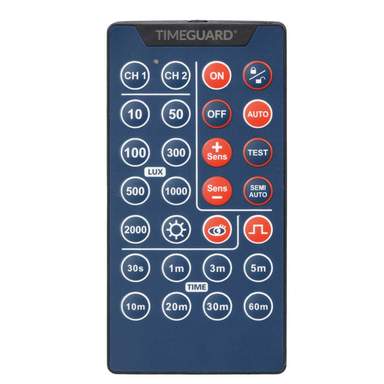

- Presence / absence detection options [IR10AB remote control sold separately required for absence detection]
- User friendly adjustment options for time and lux adjustments
- Back end cable entry
- Option for manual push button operation
- 360˚ area of detection using discreet flat PIR lens technology
- Flush to surface conversion using surface mount box model PDSMSB [sold separately]
- 800VA / 600W LED, 2200W halogen / incandescent, 1200VA / 140uF fluorescent load ratings
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Timeguard
- Class Type
- Class 2
- Colour
- White
- Cut Out
- 68mm
- Depth
- 67mm
- Detection Angle
- 360°
- Detection Range
- 8m
- Diameter
- 105mm
- Dimensions
- (Dia)105 mm x (D)67 mm
- Guarantee
- 3 Years
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Material
- Polycarbonate
- Maximum Switching Load
- Incandescent - 2200W, Fluorescent - 1200VA/140uF, LED - 800VA / 600W
- Mounting
- Ceiling / Recessed
- Number of Channels
- 1
- Packaging Types
- Each
- Shape
- Round
- Timer Adjustment
- 30 secs - 30 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.21900kg
