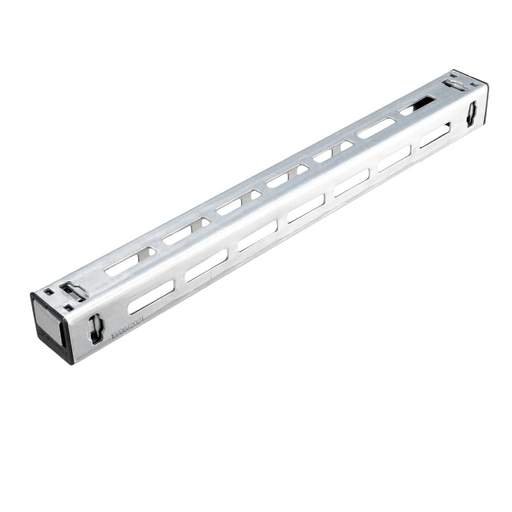

Gripple 370mm Fast Trak Suspension Bracket (Pack of 5)
Part Code: FTB-370
Stock Code: 2693-0551
Gripple 370mm Fast Trak Suspension Bracket (Pack of 5)
Part Code: FTB-370
Stock Code: 2693-0551
Features
- Pre-fabricated trapeze bracket solution offering speed, flexibility and efficient use of space
- For the installation of electrical containment, pipework, ductwork and other mechanical services in restricted places
- Up to six times faster to install than traditional suspension systems
- Pre-fabricated system which removes the need to cut threaded rod or channel on site
- Bracket can be moved up and down the tracks to accommodate changes in position during installation
- Safety locks ensure security once brackets and tracks are in place
- Four-sided bracket provides suspension point on every face
- Fire tested to F120 to the temperatures associated with BS EN 1363-1:2012
- Can be multi-tiered to accommodate additional services
- Indicators at each end of the bracket can be used as a measurement guide when marking fixing points in the soffit
- Distance between tracks: 376mm
- Maximum single point load: 100kg
- Maximum uniform load: 200kg [3:1]
- Brackets only [tracks sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- Lloyds, UL, TUV, APAVE, Fire Tested F120 [Exova]
- Depth
- 41.5mm
- Dimensions
- (L)439 mm x (W)41.5 mm x (D)41.5 mm
- Length
- 439mm
- Material
- DX51D Mild Steel/Polypropylene/Impact Copolymer
- Packaging Types
- Pack
- Product Range
- Fast Trak
- Unspsc V18
- 39111831
- Unspsc V24
- 39111831
- Video Url
- https://www.youtube.com/embed/2SmNKjXDWLo
- Weight
- 0.68kg
- Width
- 41.5mm
