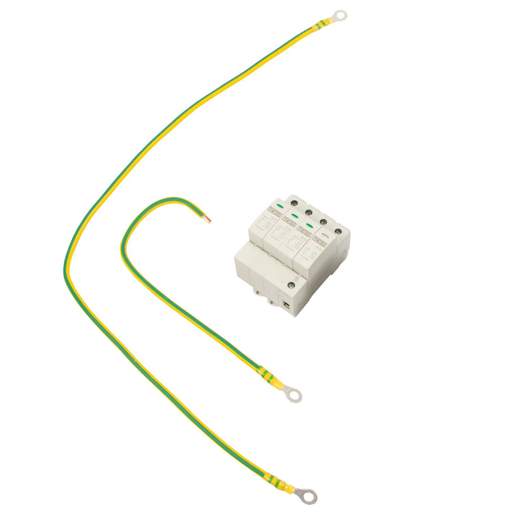

Proteus EV T12 Lightning and Surge Protection Kit for 200A O-PEN Boards
Part Code: OPSPDT12S2
Stock Code: 2711-1154
Proteus EV T12 Lightning and Surge Protection Kit for 200A O-PEN Boards
Part Code: OPSPDT12S2
Stock Code: 2711-1154
Features
- Combined Type 1 2 surge protection device
- DIN rail mounting
- Plug in modules
- Key coded modules to prevent wrong insertion
- Reversible modules to allow top or bottom cabled terminals
- Visual status indication
- Suitable for TNC-s/TN-s or TT systems
- Impulse current Iimp - 50kA 10/350 µs
- Maximum discharge current Imax - 50kA 8/20 µs
- Nominal discharge current In - 20kA 8/20 µs
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- BS EN 61643 pt 1
- Guarantee
- 1 Year
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Type
- 1 2
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Weight
- 0.97000kg
