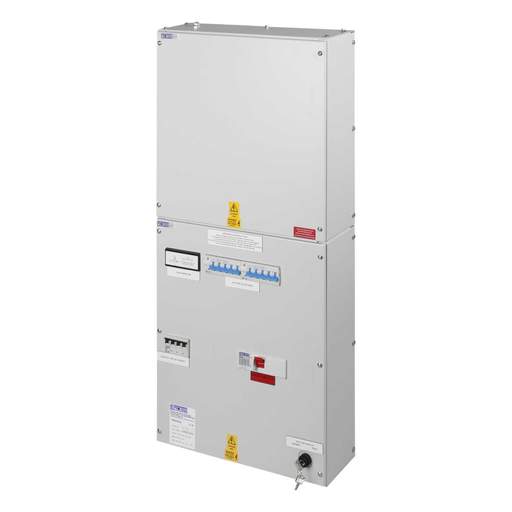

Proteus EV 200A TP+N O-PEN Protector Board
Part Code: OPS2
Stock Code: 2711-1160
Proteus EV 200A TP+N O-PEN Protector Board
Part Code: OPS2
Stock Code: 2711-1160
Features
- 200A, PEN protector board for use with existing distribution boards
- Utilises O-PEN® technology
- 5 pole switching, 3 phases, neutral and earth for complete isolation
- Earth rods are not necessary when using O-PEN® technology
- Automatic re-closure of 5 pole MCB after restoration of healthy supply
- Allows use of existing distribution boards
- Options for surge arrestors and metering
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 200A
- Depth
- 170mm
- Dimensions
- (H)1100 mm x (W)500 mm x (D)170 mm
- Guarantee
- 1 Year
- Height
- 1100mm
- Mounting
- Surface
- Number of Poles
- Four Pole
- Packaging Types
- Each
- Product Range
- Proteus EV
- Standards
- BSEN 61439 -1 and 3
- Torque Settings
- 20Nm
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V 415V
- Weight
- 48.00000kg
- Width
- 500mm
