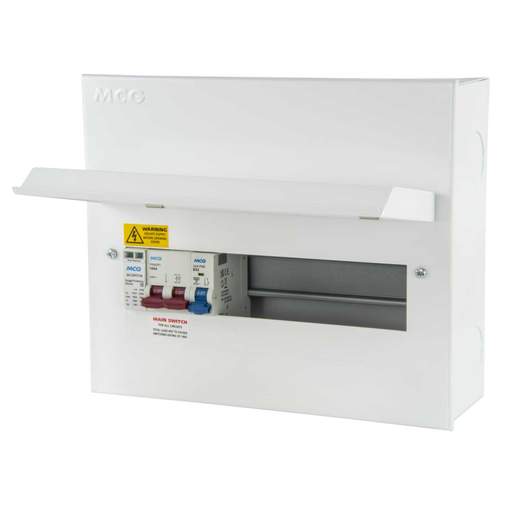

MCG 8 Way 100A Isolator Incomer Metal Clad Consumer Unit Pre-Wired SPD
Part Code: MMSB8SPDM
Stock Code: 2711-1379
MCG 8 Way 100A Isolator Incomer Metal Clad Consumer Unit Pre-Wired SPD
Part Code: MMSB8SPDM
Stock Code: 2711-1379
Features
- Supplied complete with fully fitted and pre-wired 1 x 2 pole 100A incoming Isolator, 1 x Type 2 SPD and 1 x 32A MCB
- Ferruled cable ends for secure connections
- Fully enclosed metal construction body with drop-down metal cover
- Raised keyholes for secure easy installation
- Multiple circular cable entry knockouts top [M25, M32 and M40] plus rear aperture/rounded cable entries
- Finished in white polyester powder coating to RAL9010
- IP20 protection
- Retained screws
- SPD is suitable for TN-C-S, TN-S and TT earthing systems
- SPD is compliant to 18th Edition Wiring Regulations [BS 7671:2018 Surge Protection]
- BS EN 61439-3 compliant
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts [M25, M32 and M40]
- Compliance
- UKCA, CE
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)235 mm x (W)305 mm x (D)110 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 235mm
- IP Rating
- IP20
- Incoming Device
- 100A DP Isolator
- Material
- Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 8
- Packaging Types
- Box
- Standards
- BS EN 61439-3
- Supplied With
- 1 x 100A 2 Pole Isolator, 1 x SPD [Type 2, TN-C-S, TN-S and TT Earthing] and accompanying 1 x 32A [6kA B Curve] MCB
- Surge Protection Fitted
- Yes
- Type
- Isolator Controlled
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 2.85000kg
- Width
- 305mm
